Detailed Description

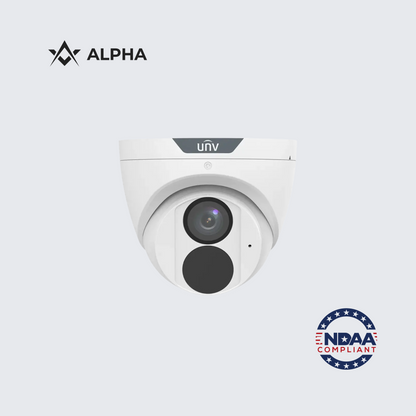

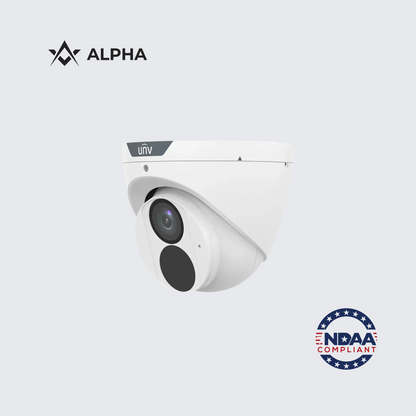

The Uniview IPC3614SR‑ADF28KM‑H is a compact 4MP turret network camera designed for reliable indoor and outdoor surveillance. It features a 1/3" CMOS sensor and delivers crisp 2688×1520 resolution at 30fps. A fixed 2.8mm lens offers a wide 97° field of view, ideal for monitoring entrances, storefronts, or open spaces.

Smart IR technology provides clear night vision up to 30 meters (98 feet), while 120 dB True WDR ensures balanced exposure in high-contrast lighting. Video is compressed using Ultra 265, H.265, or H.264 formats to save bandwidth and storage.

This model includes built-in audio, motion detection, intrusion detection, line crossing, tampering, ultra motion, and audio detection for intelligent monitoring. Housed in an IP67-rated enclosure, it withstands harsh weather and temperatures from -30°C to +60°C. Power is supplied via 12V DC or PoE.

With support for up to 512GB microSD storage, ONVIF S/G/T compatibility, and remote access via EZView and EZStation, the IPC3614SR‑ADF28KM‑H is a smart, high-performance choice for modern surveillance needs.

FAQs for

What is the resolution of the Uniview IPC3614SR‑ADF28KM‑H?

It delivers 4MP resolution, offering video up to 2688×1520 pixels (or 2560×1440 at reduced frame rate depending on region), for clear, accurate imaging.

How far can it see at night?

This camera uses Smart IR illumination reaching up to 30 m (98 ft), adjusting intensity automatically for clear, balanced night vision even in total darkness.

Does it support Power over Ethernet (PoE)?

Yes – it supports IEEE 802.3af PoE, enabling both power and data over a single Ethernet cable, which simplifies installation.

Is it weatherproof for outdoor use?

Yes – with an IP67-rated metal housing, it offers excellent resistance to rain, dust, and extreme temperatures (‑30 °C to +60 °C / ‑22 °F to +140 °F).

Can I access it remotely?

Yes – it’s compatible with Uniview’s EZView mobile app and EZStation software, and supports ONVIF Profiles S/G/T for integration with third‑party systems.

What smart detection features does it offer?
  • Motion detection
  • Cross-line detection (human body)
  • Intrusion detection (human body)
  • Ultra motion detection
  • Tampering alarm
  • Audio detection

Tech Specs for
  • Image Sensor: 1/3″ progressive scan CMOS
  • Maximum Resolution: 4MP (2688×1520 @ 30 fps; 2560×1440 @ 25 fps)
  • Lens Options: Fixed 2.8 mm (≈97° H‑view) or optional 4 mm
  • Night Vision: Smart IR up to 30 m (98 ft)
  • Video Compression: Ultra 265, H.265, H.264, MJPEG
  • WDR: 120 dB True WDR; EasyStar technology for enhanced low-light performance
  • Smart Detection Features: Motion, intrusion, cross-line, tampering, ultra motion, audio detection
  • Audio Capability: Built‑in microphone, audio detection
  • Storage: MicroSD up to 512 GB, ANR, NAS support
  • Power: PoE (IEEE 802.3af) or 12 V DC
  • Housing / Durability: IP67-rated metal housing; operating range ‑30 °C to +60 °C
  • Installation: 3-axis adjustable bracket
  • Integration: ONVIF Profiles S/G/T; EZView, EZStation compatibility
