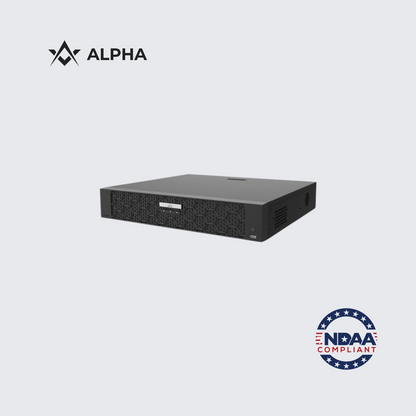

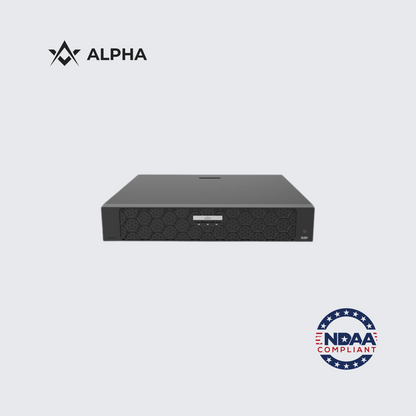

NVR504-32B-P16 | Uniview 16MP Fixed Lens 32-Channel PoE NVR

NVR504-32B-P16 | Uniview 16MP Fixed Lens 32-Channel PoE NVR

Name: NVR504-32B-P16 | Uniview 16MP Fixed Lens 32-Channel PoE NVR
Brand: Uniview
SKU: NVR504-32B-P16
Price: 1249.00 USD
Availability: InStock

$1,249.00

Product Description

The Uniview NVR504-32B-P16 Series is a professional 32-channel network video recorder (NVR) designed to support up to 16MP resolution recording with robust performance for medium to large-scale surveillance systems. Equipped with 16 built-in PoE ports, this model simplifies deployment by allowing direct power and data transmission to connected IP cameras. The unit supports advanced video compression formats including Ultra 265, H.265, and H.264, enabling efficient storage without compromising video quality. With high-capacity storage support (up to 4 HDDs), smart search functionality, and real-time monitoring and playback, the NVR504-32B-P16 is ideal for commercial properties, campuses, retail environments, and multi-site enterprises.

Share:

Share

Need help?

NVR504-32B-P16 | Uniview 16MP Fixed Lens 32-Channel PoE NVR

$1,249.00

References

Additional Information about NVR504-32B-P16 | Uniview 16MP Fixed Lens 32-Channel PoE NVR

FAQs

What recording resolution does the NVR504-B-P Series support?

The NVR504-B-P Series supports up to 16MP recording resolution, providing ultra-high-definition video capture across all supported channels.

How many IP cameras and PoE ports does the NVR504-B-P Series support?

This series supports up to 64 IP channels and offers multiple PoE configurations, including 16, 32, or 64 PoE ports, enabling direct power and data connectivity for connected IP cameras.

Does the NVR504-B-P Series include smart video analytics?

Yes, the NVR504-B-P Series supports intelligent video analytics such as intrusion detection, line crossing detection, face detection, and people counting for proactive monitoring and threat detection.

What storage capacity does the NVR504-B-P Series offer?

The recorder provides four SATA interfaces, each supporting up to 16TB per HDD, allowing for a maximum total storage capacity of up to 64TB.

What video compression technologies are supported by the NVR504-B-P Series?

The NVR504-B-P Series supports Ultra 265, H.265, H.264, and MJPEG compression formats, maximizing storage efficiency while preserving video quality.

Is the NVR504-B-P Series compatible with third-party cameras?

Yes, the NVR504-B-P Series is ONVIF compliant, ensuring smooth integration with a wide range of third-party IP cameras that support ONVIF standards.

Can the NVR504-B-P Series provide simultaneous HDMI and VGA output?

Yes, the recorder supports HDMI output up to 4K (3840×2160) resolution and VGA output up to 1080P (1920×1080), allowing for flexible display options across multiple monitors.

What are the network bandwidth capabilities of the NVR504-B-P Series?

The NVR504-B-P Series offers up to 320Mbps of incoming bandwidth and up to 256Mbps of outgoing bandwidth, providing stable video recording, playback, and streaming performance.

Does the NVR504-B-P Series support remote access and monitoring?

Yes, the NVR504-B-P Series allows remote access through Uniview’s EZView mobile app, enabling users to view live video, playback recordings, and manage system settings from smartphones or tablets.

What are the supported environmental conditions for the NVR504-B-P Series?

The recorder operates within a temperature range of -10°C to 55°C (14°F to 131°F), making it suitable for most indoor surveillance environments.

Tech Spec

Channels: 32-channel IP camera input

Video Output: HDMI, VGA (up to 4K resolution)

Recording Resolution: Up to 12MP

Decoding Capability: 2-ch 12MP, 4-ch 4K, 16-ch 1080p

Incoming Bandwidth: 320 Mbps

Outgoing Bandwidth: 256 Mbps

PoE Ports: 16 independent ports (supports IPC direct connection)

Hard Drive Support: Up to 4 SATA HDDs (up to 10TB each)

RAID Support: RAID 0, 1, 5, 10

Compression: Ultra 265, H.265, H.264

Network Protocols: ONVIF, RTSP, HTTPS, etc.

Alarm I/O: 16 alarm in, 4 alarm out

Audio I/O: 1 input, 1 output (RCA)

USB Ports: 2 x USB 2.0, 1 x USB 3.0

Remote Access: Mobile app (EZView), Web Client

Operating System: Embedded Linux

Certifications: NDAA compliant

Power Supply: Built-in PoE switch (max 200W)

Dimensions: 430mm × 451mm × 90mm (1.5U rack mountable)
