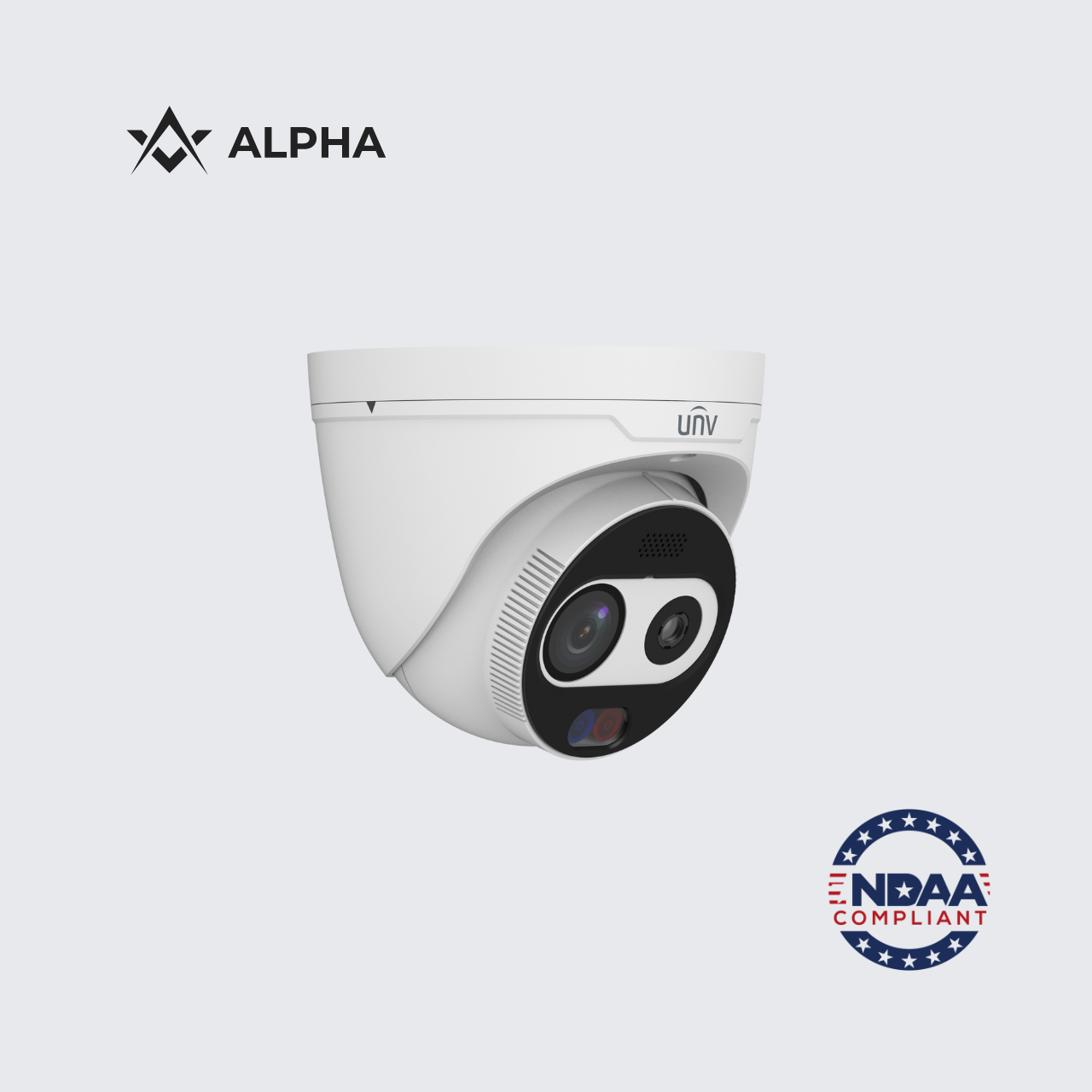

TIC3612SA-F7-4F6AC-I1 | Uniview Thermal 4MP 256×192 Dual-Spectrum Temperature-Detecting Turret Network Camera
TIC3612SA-F7-4F6AC-I1 | Uniview Thermal 4MP 256×192 Dual-Spectrum Temperature-Detecting Turret Network Camera
TIC3612SA-F7-4F6AC-I1 | Uniview Thermal 4MP 256×192 Dual-Spectrum Temperature-Detecting Turret Network Camera

Uniview

TIC3612SA-F7-4F6AC-I1 | Uniview Thermal 4MP 256×192 Dual-Spectrum Temperature-Detecting Turret Network Camera

$1,299.00

Uniview TIC3612SA-F7-4F6AC-I1 Series is an advanced turret thermal camera designed to deliver reliable thermal imaging performance for security and monitoring applications. This model features a 256×192 thermal resolution sensor, along with a 4MP optical camera, offering dual-spectrum video streams for comprehensive situational awareness. Equipped with temperature measurement capabilities, the TIC3612SA-F7-4F6AC-I1 can detect abnormal temperature variations and support early warning systems for fire prevention or perimeter intrusion detection. Built with a rugged design suitable for challenging indoor and outdoor environments, this camera is ideal for industrial facilities, critical infrastructure, and perimeter security applications where real-time thermal monitoring is crucial.



Need help?

References

Additional Information about TIC3612SA-F7-4F6AC-I1 | Uniview Thermal 4MP 256×192 Dual-Spectrum Temperature-Detecting Turret Network Camera

FAQs
What is the primary function of the TIC3612SA-F7-4F6AC-I1 Series?

The TIC3612SA-F7-4F6AC-I1 Series serves as a turret thermal camera, providing dual-spectrum imaging (thermal and optical) for security, monitoring, temperature measurement, and early warning applications.

What are the key imaging specifications of the TIC3612SA-F7-4F6AC-I1 Series?

The TIC3612SA-F7-4F6AC-I1 Series offers a 256×192 thermal resolution and a 4MP optical camera for clear, detailed video monitoring in a variety of lighting and environmental conditions.

Does the TIC3612SA-F7-4F6AC-I1 Series support temperature measurement?

Yes, the camera includes accurate temperature detection and alarm functions, making it ideal for applications such as fire detection, equipment monitoring, and perimeter security.

Is the TIC3612SA-F7-4F6AC-I1 Series suitable for outdoor use?

Yes, the TIC3612SA-F7-4F6AC-I1 Series is designed for both indoor and outdoor use, with a robust construction that ensures stable performance in various environmental conditions.

What video compression technologies are supported by the TIC3612SA-F7-4F6AC-I1 Series?

The camera supports modern compression standards including H.265, H.264, and MJPEG, optimizing video storage and bandwidth efficiency.

Does the TIC3612SA-F7-4F6AC-I1 Series support smart detection features?

Yes, it supports intelligent features such as intrusion detection, line crossing detection, and region entrance/exit detection, enhancing the camera's perimeter protection capabilities.

What power supply options are available for the TIC3612SA-F7-4F6AC-I1 Series?

The camera supports standard DC 12V input as well as PoE (Power over Ethernet) for flexible and efficient installation.

Is edge storage supported by the TIC3612SA-F7-4F6AC-I1 Series?

Yes, the camera supports edge storage via a built-in MicroSD card slot (up to 256GB), allowing local recording directly on the device.

Can the TIC3612SA-F7-4F6AC-I1 Series be accessed remotely?

Yes, the camera offers full remote access capabilities via web browsers, mobile apps, and Uniview's video management platforms for real-time monitoring and playback.

What environments is the TIC3612SA-F7-4F6AC-I1 Series best suited for?

The TIC3612SA-F7-4F6AC-I1 Series is ideal for industrial sites, warehouses, energy facilities, border security, critical infrastructure, and other settings requiring reliable thermal and visual surveillance.

Tech Spec

Thermal Sensor: 160 × 120 VOx uncooled infrared focal plane sensor

Thermal Lens Options: 4 mm fixed lens

Visible Sensor: 1/2.8'' CMOS, 1920 × 1080 resolution

Visible Lens Options: 6 mm fixed lens

Temperature Measurement Range: -20°C to +150°C (-4°F to +302°F)

Temperature Accuracy: ±2°C or ±2%

Detection Range: Up to 220 meters (human target, thermal)

Image Enhancement: 3D DNR, AGC, DDE (Digital Detail Enhancement)

Smart Functions: Temperature monitoring, fire detection, smoking detection

Video Compression: H.265, H.264, MJPEG

Audio Capability: Built-in microphone

Alarm Interface: 1 alarm input, 1 alarm output

Network Interface: 1 × 10M/100M Ethernet, RJ45

Power Supply: 12V DC ±25%, PoE (IEEE 802.3af)

Power Consumption: Max. 7 W

Operating Conditions: -20°C to +50°C (-4°F to +122°F), humidity ≤95% RH

Ingress Protection: IP66 rated, suitable for outdoor use

Housing: Metal construction

Dimensions: Φ138 mm × 120 mm (Φ5.43" × 4.72")

Weight: 0.93 kg (2.05 lb)
