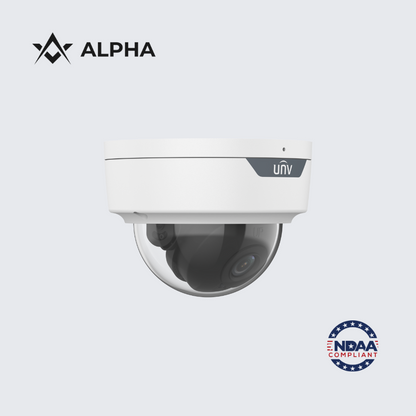

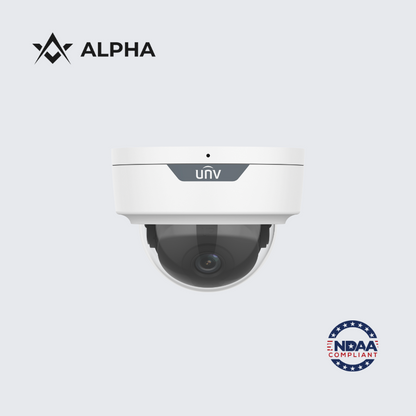

Additional Information about IPC324SS-ADF28K-I1 | Uniview 4MP Fixed Lens Dome Camera – PRIME-II Series

FAQs
What is the video resolution of the IPC324SS-ADF28K-I1 Series?

The IPC324SS-ADF28K-I1 delivers 4MP resolution (2688 × 1520), offering clear and detailed video ideal for identifying subjects and monitoring wide areas.

What type of lens does the IPC324SS-ADF28K-I1 use?

It features a 2.8 mm fixed lens that provides a wide field of view suitable for covering entrances, hallways, and open indoor or outdoor areas.

Is the IPC324SS-ADF28K-I1 suitable for outdoor use?

Yes, this camera is IP67-rated for weather resistance and IK10-rated for vandal protection, making it suitable for both indoor and outdoor installations.

What smart detection features are included with the IPC324SS-ADF28K-I1?

The camera supports smart video analytics such as motion detection, line crossing, intrusion detection, and region entrance/exit detection.

Does the IPC324SS-ADF28K-I1 support night vision?

Yes, the camera is equipped with smart IR LEDs, providing up to 30 meters (98 feet) of clear night vision in low-light or complete darkness.

What video compression formats are supported?

The camera supports Ultra 265, H.265, and H.264 video compression formats, helping reduce bandwidth and storage requirements without compromising quality.

Can the IPC324SS-ADF28K-I1 be accessed remotely?

Yes, it supports remote access via Uniview’s EZView mobile app or through compatible VMS platforms for live view, playback, and configuration.

Is edge storage available on the IPC324SS-ADF28K-I1?

Yes, the camera supports a built-in MicroSD card slot for edge recording, with support for cards up to 256 GB.

What power supply options does the camera support?

The IPC324SS-ADF28K-I1 can be powered via PoE (Power over Ethernet) or a 12V DC power supply, offering flexible installation options.

What are the key use cases for the IPC324SS-ADF28K-I1?

This camera is ideal for applications requiring robust surveillance such as retail stores, schools, offices, building entrances, and parking areas.

Tech Spec

Image Sensor: 1/2.8" Progressive Scan CMOS

Maximum Resolution: 3840 × 2160 (8MP) @20fps

Lens Type: 2.8mm fixed lens

Field of View: 112.1° (H), 59.4° (V), 134.4° (D)

IR Range: Up to 30m (Smart IR)

WDR: 120 dB True WDR

Compression: Ultra 265, H.265, H.264

Audio Capability: Built-in microphone

Smart Features: Motion detection, human body detection, intrusion, line crossing

Network Interface: 1 × RJ45 10M/100M Ethernet

Weatherproof Rating: IP67, IK10 vandal-resistant

Power: 12V DC ±25%, PoE (IEEE 802.3af)

Operating Conditions: -30°C to +60°C (-22°F to +140°F)
