PTZ

• Sensor: 1/2.7", 4MP, CMOS
• Optical Zoom: 25X
• IR Range: Up to 100m (328.1 ft)
• Min. Illumination: 0.003 lux (Color, F1.5)
• WDR: 120dB
• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Frame Rate: 4MP (2688*1520) @ 30 fps
• Protection: IP66

Loud Speaker

• Rated Power: 30 W
• Max. Acoustic Pressure: 130 dBSPL
• Frequency Response: 300 Hz to 12.5 kHz
• Two-Way Audio: Supported
• Audio Compression: G.711U
• Protection: IP66

General System & Structure

• Power: DC 12V / 24V, PoE (IEEE 802.3af), PoE+ (IEEE 802.3at)
• Edge Storage: Micro SD, up to 512 GB supported
• Working Temperature: -40℃ to +65℃ (-40°F to +149°F) range
• Network Interface: 1 × RJ45 10 M/100 M Base-TX Ethernet
• Certifications: CE, FCC, UL, CB, RoHS

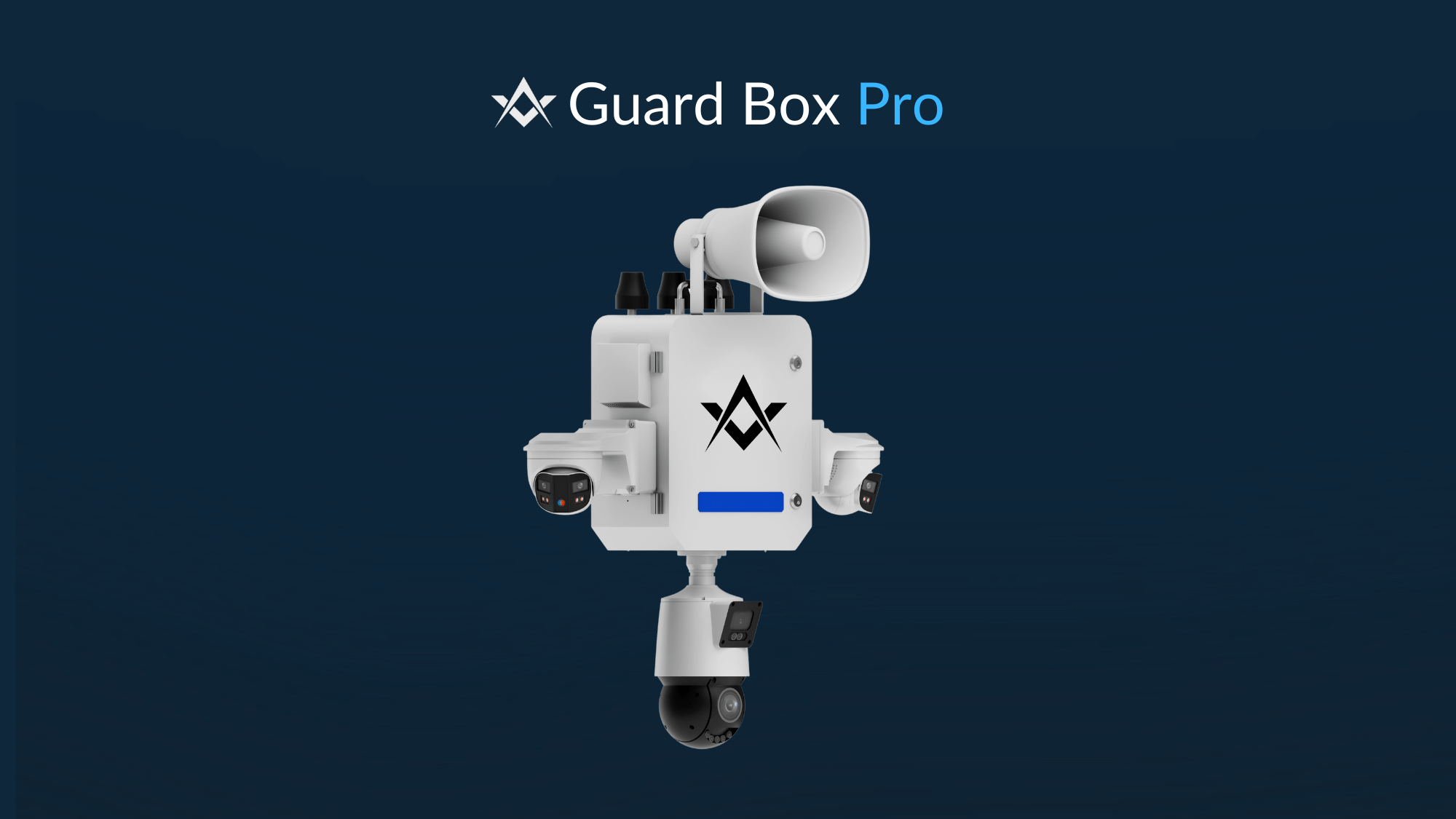

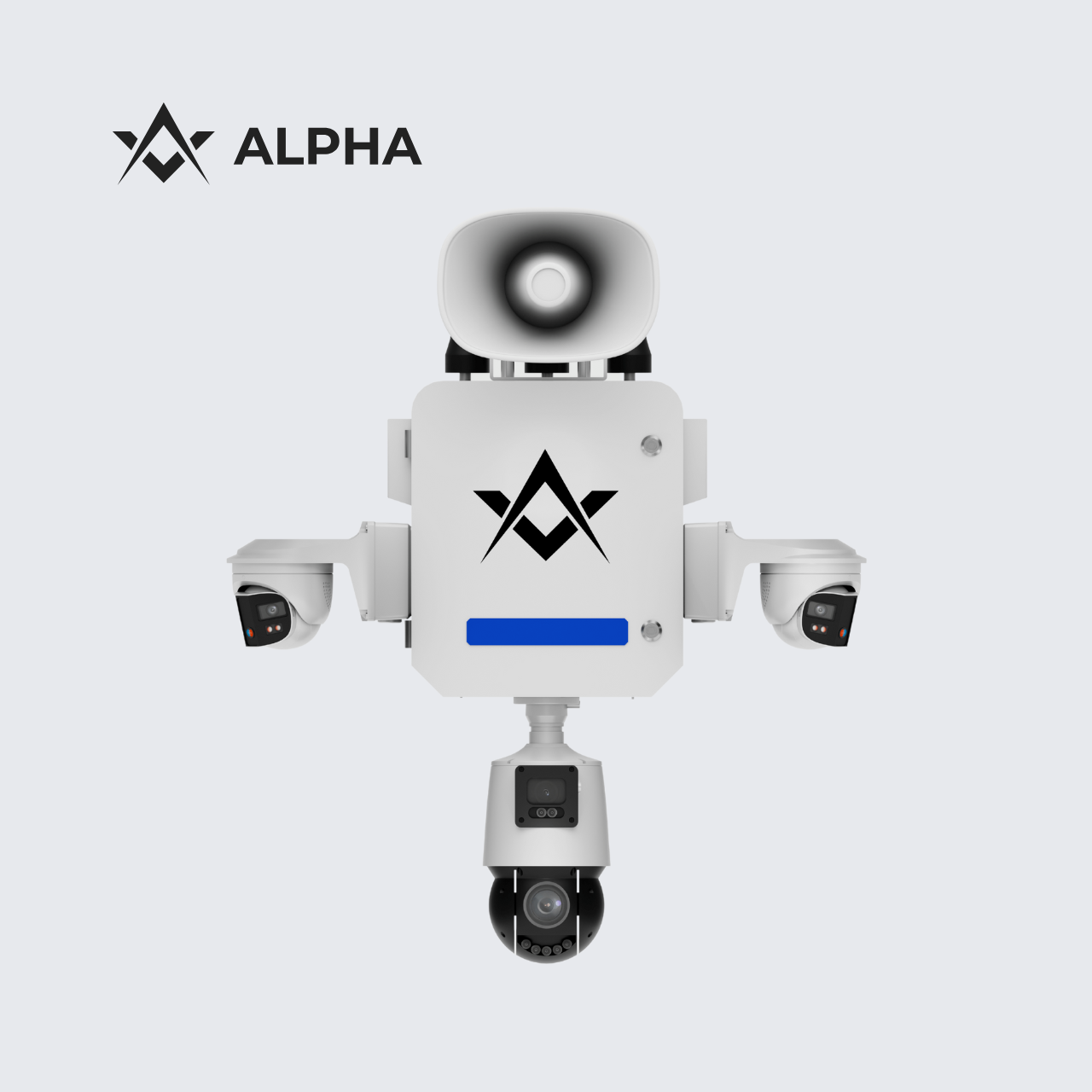

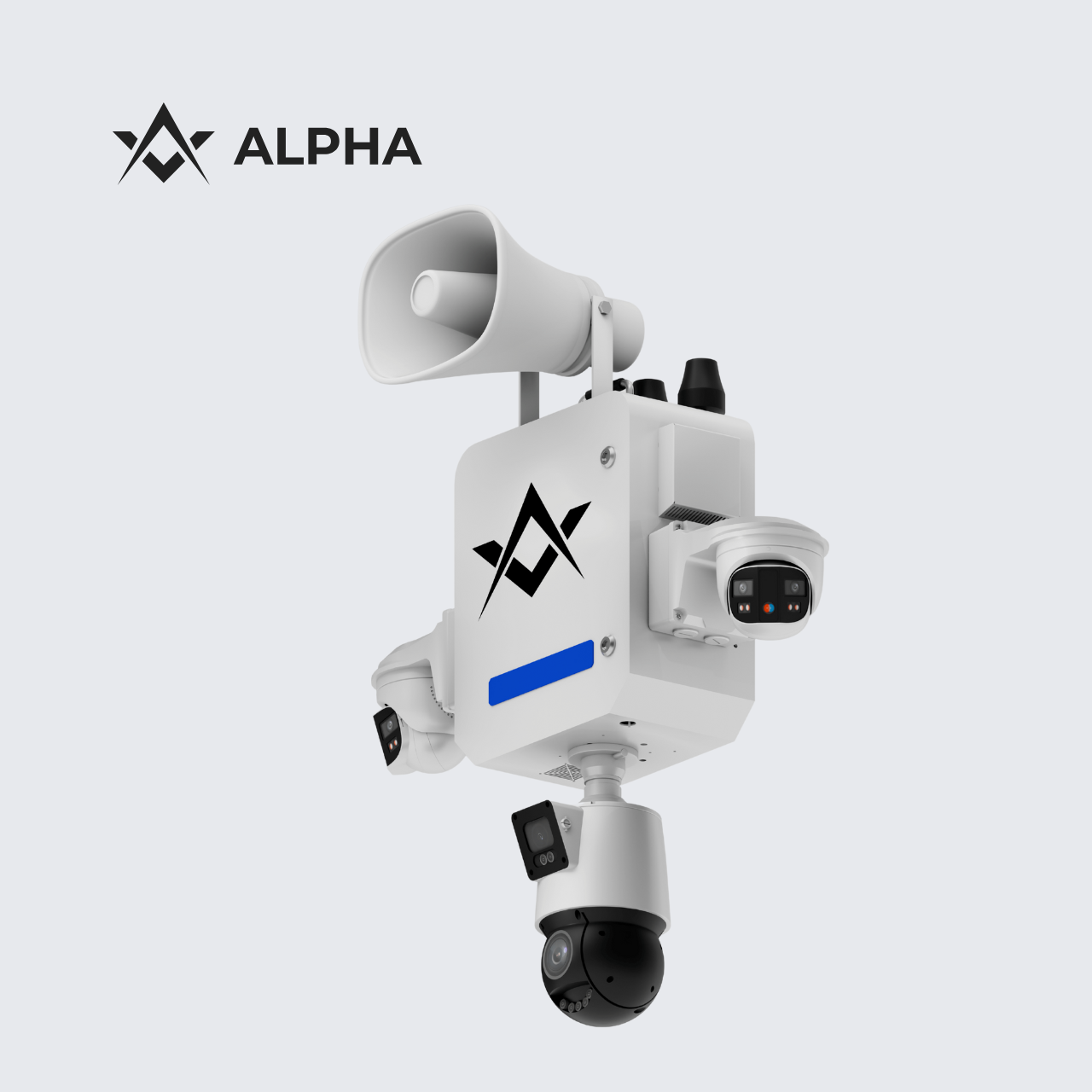

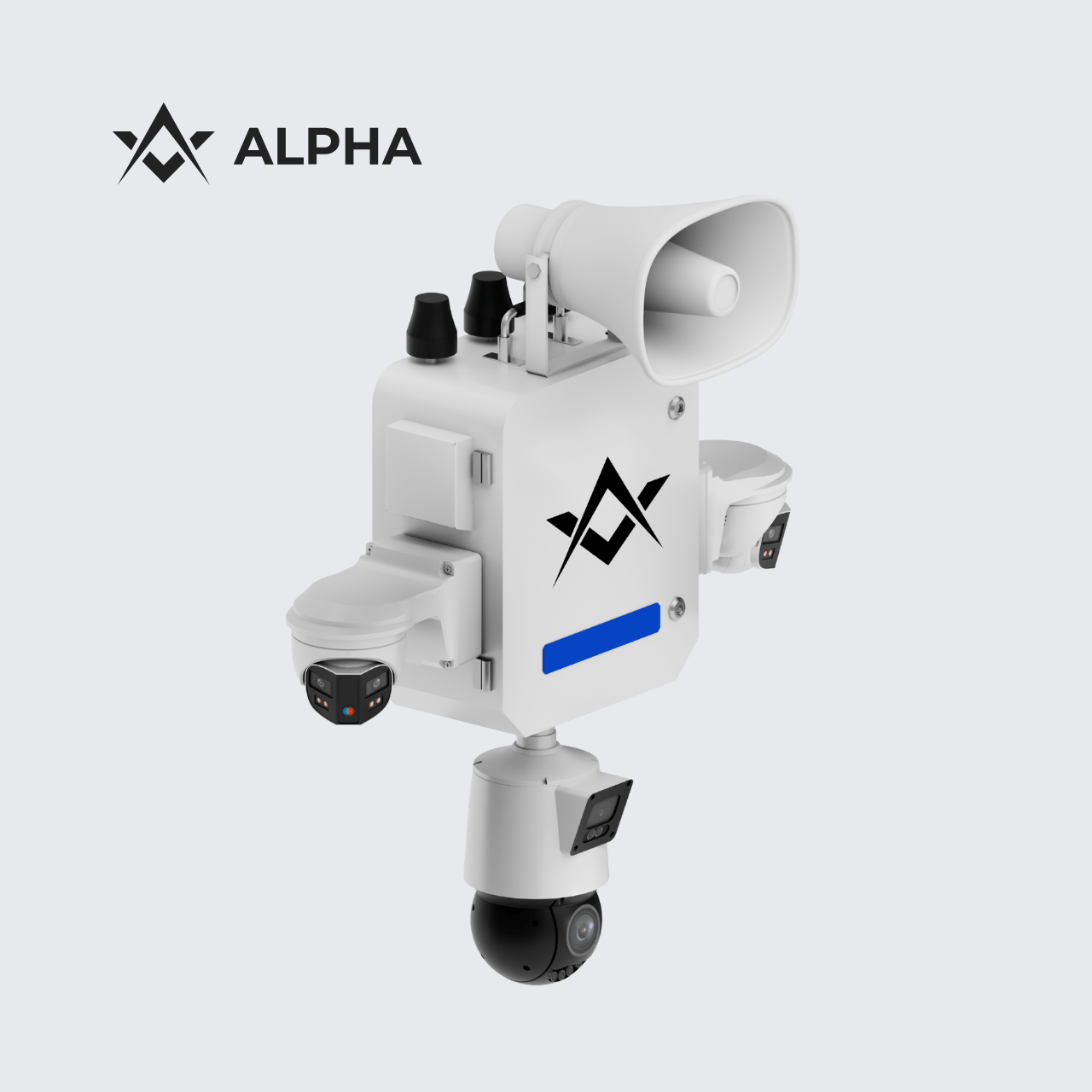

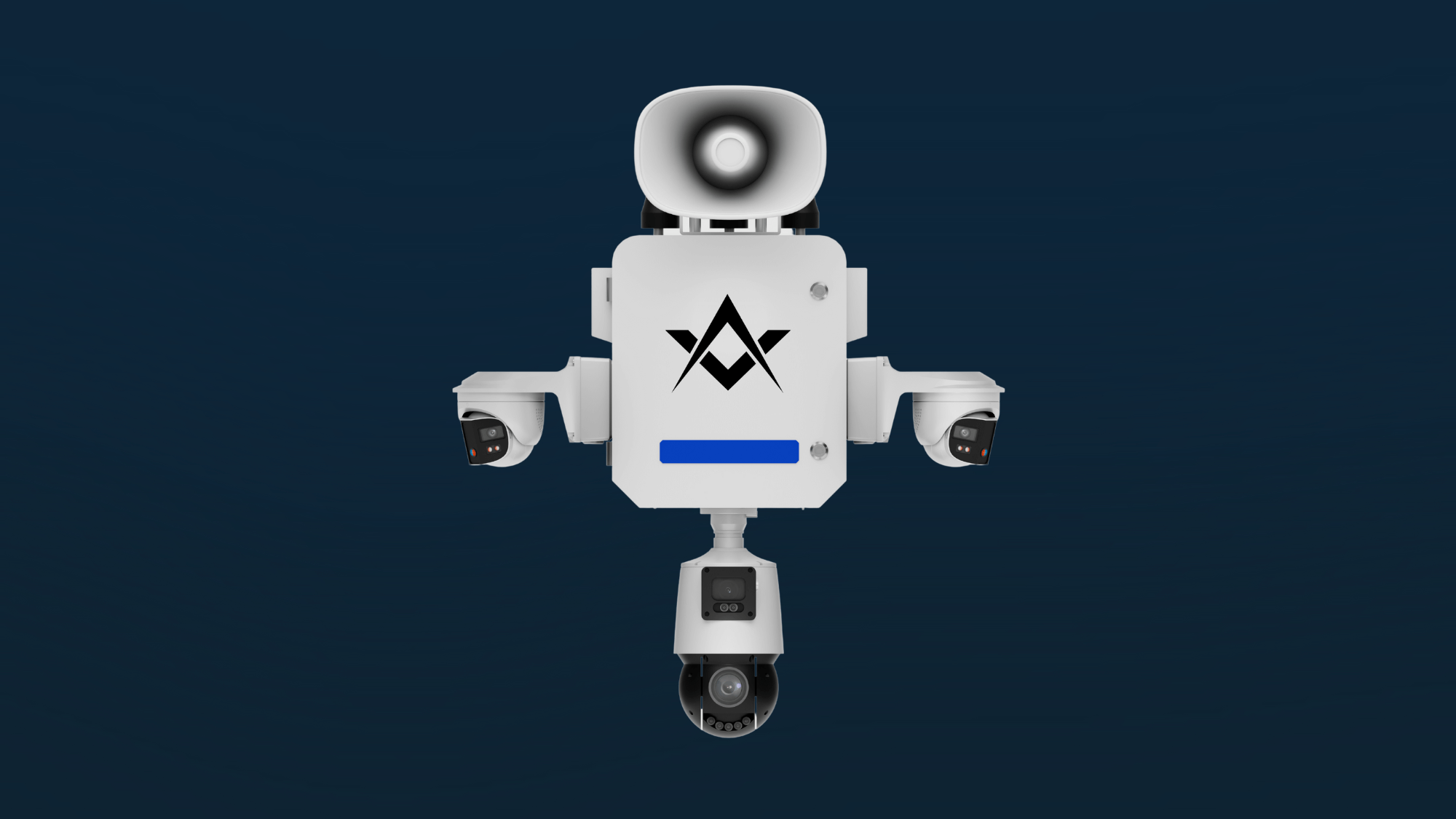

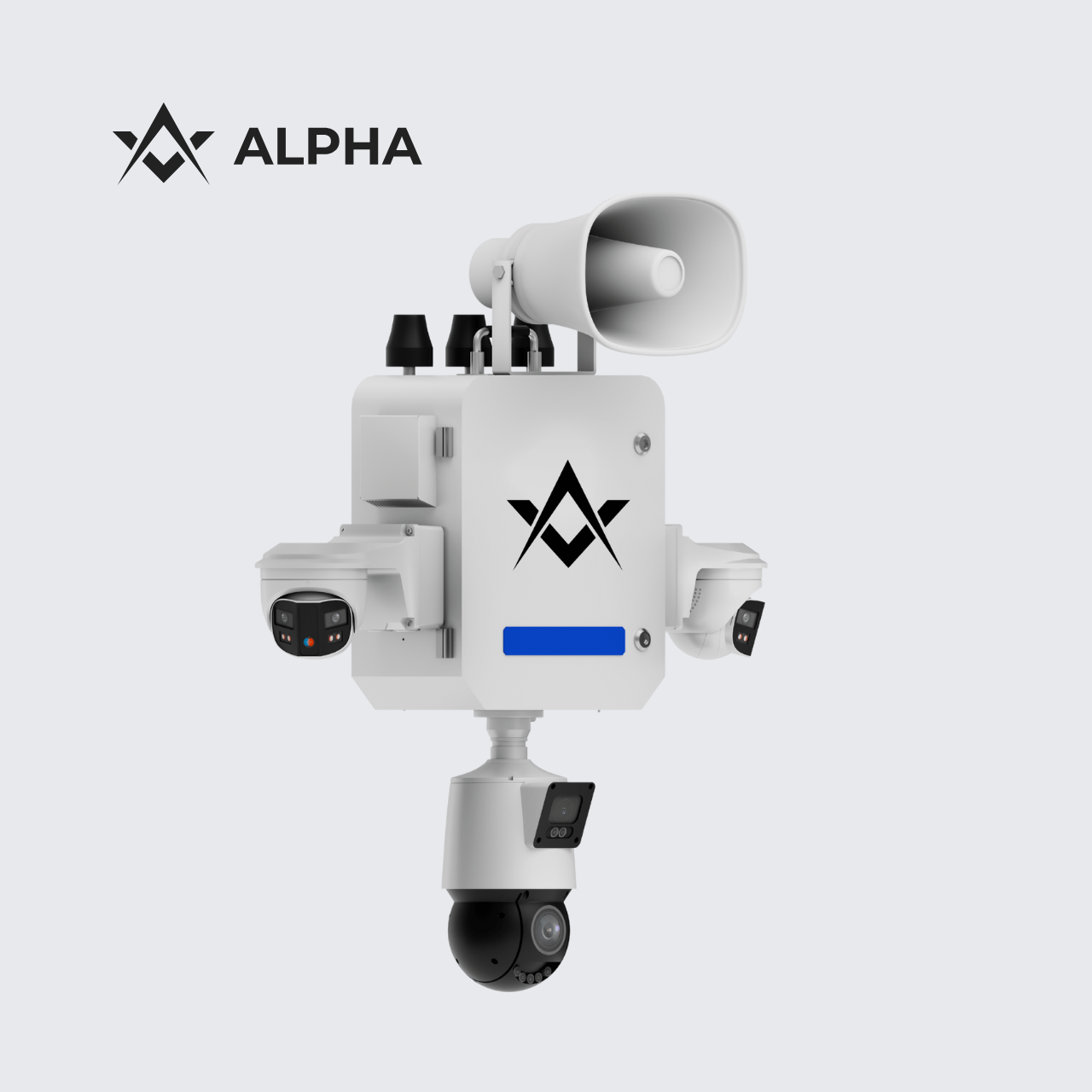

What is the Alpha Vision Guard Box Pro?

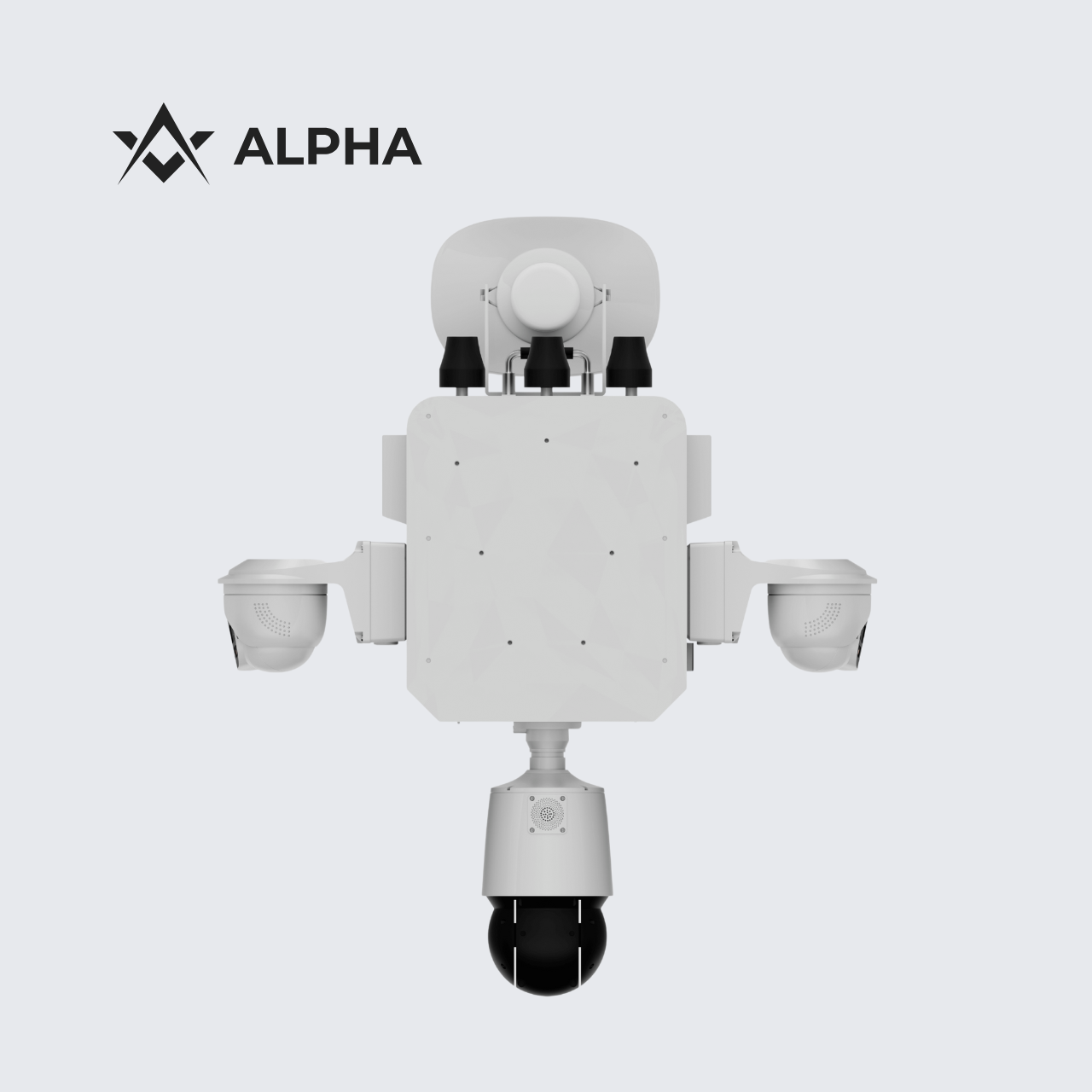

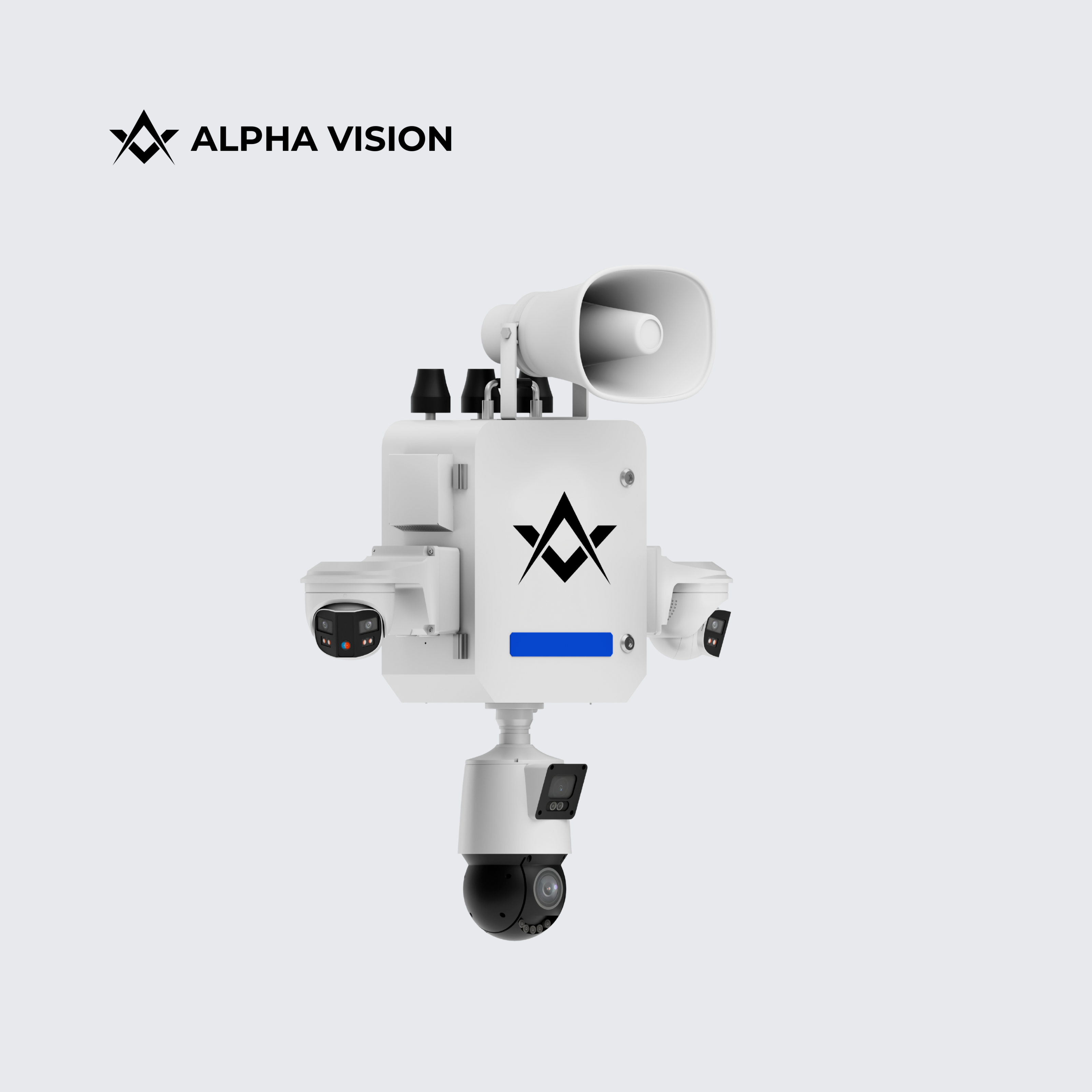

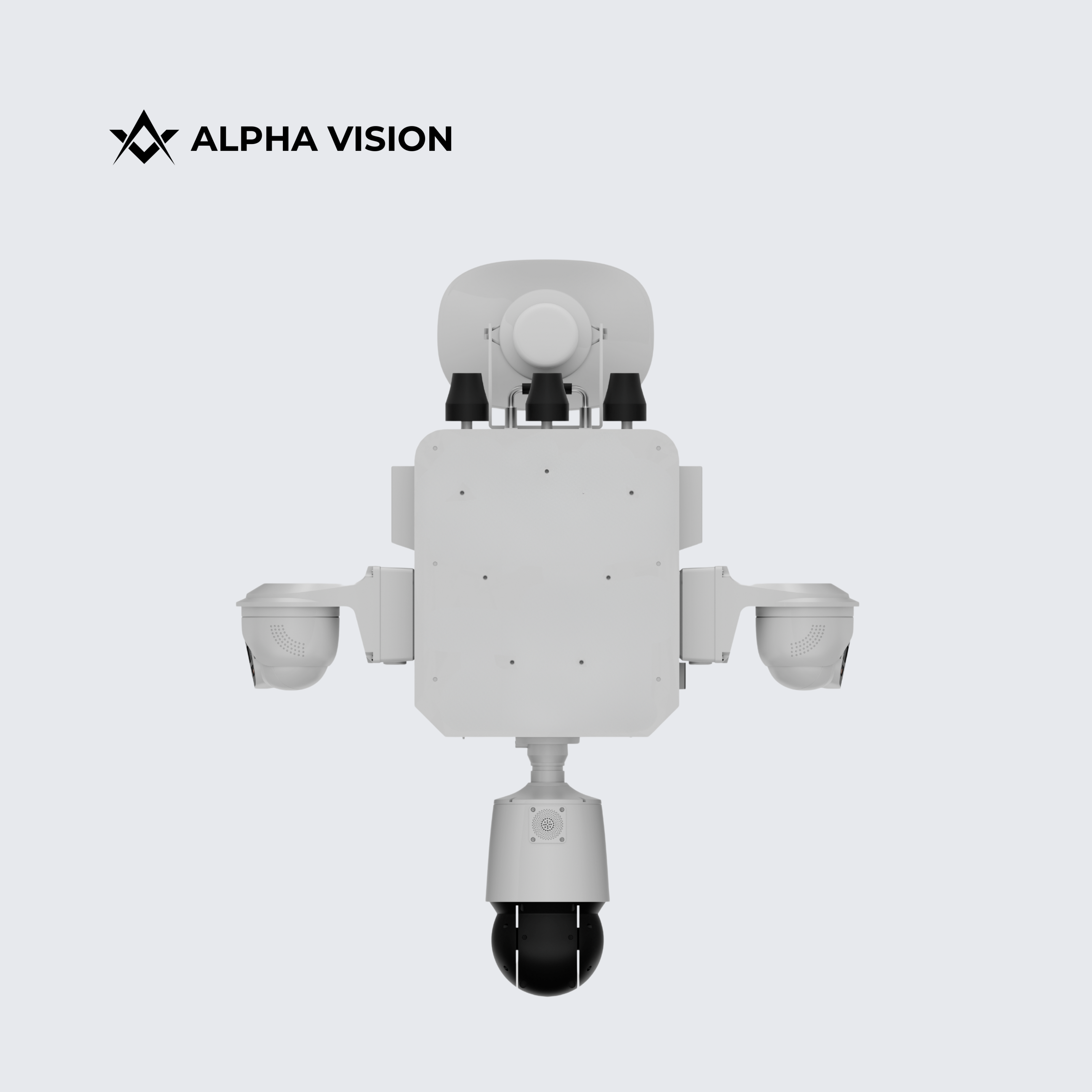

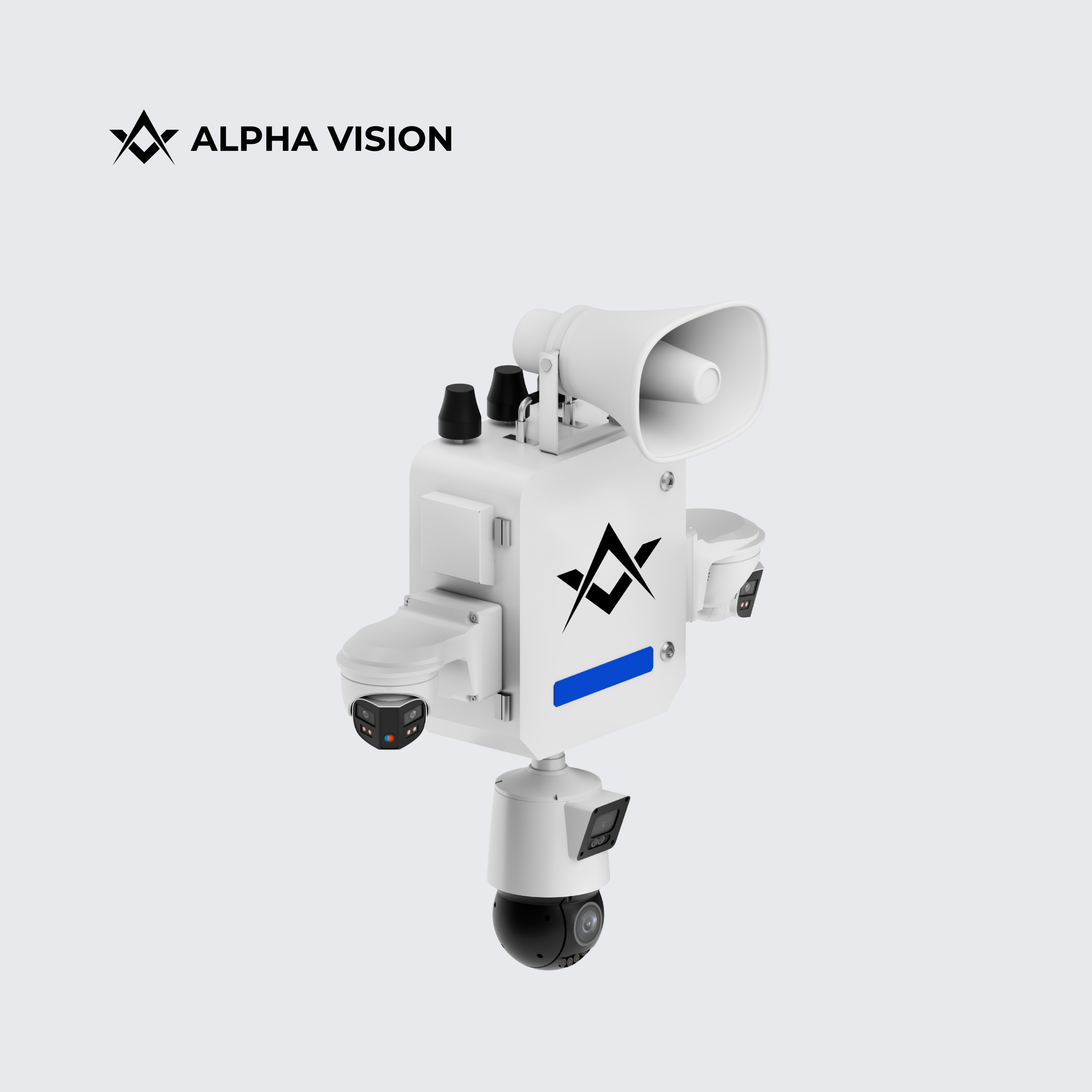

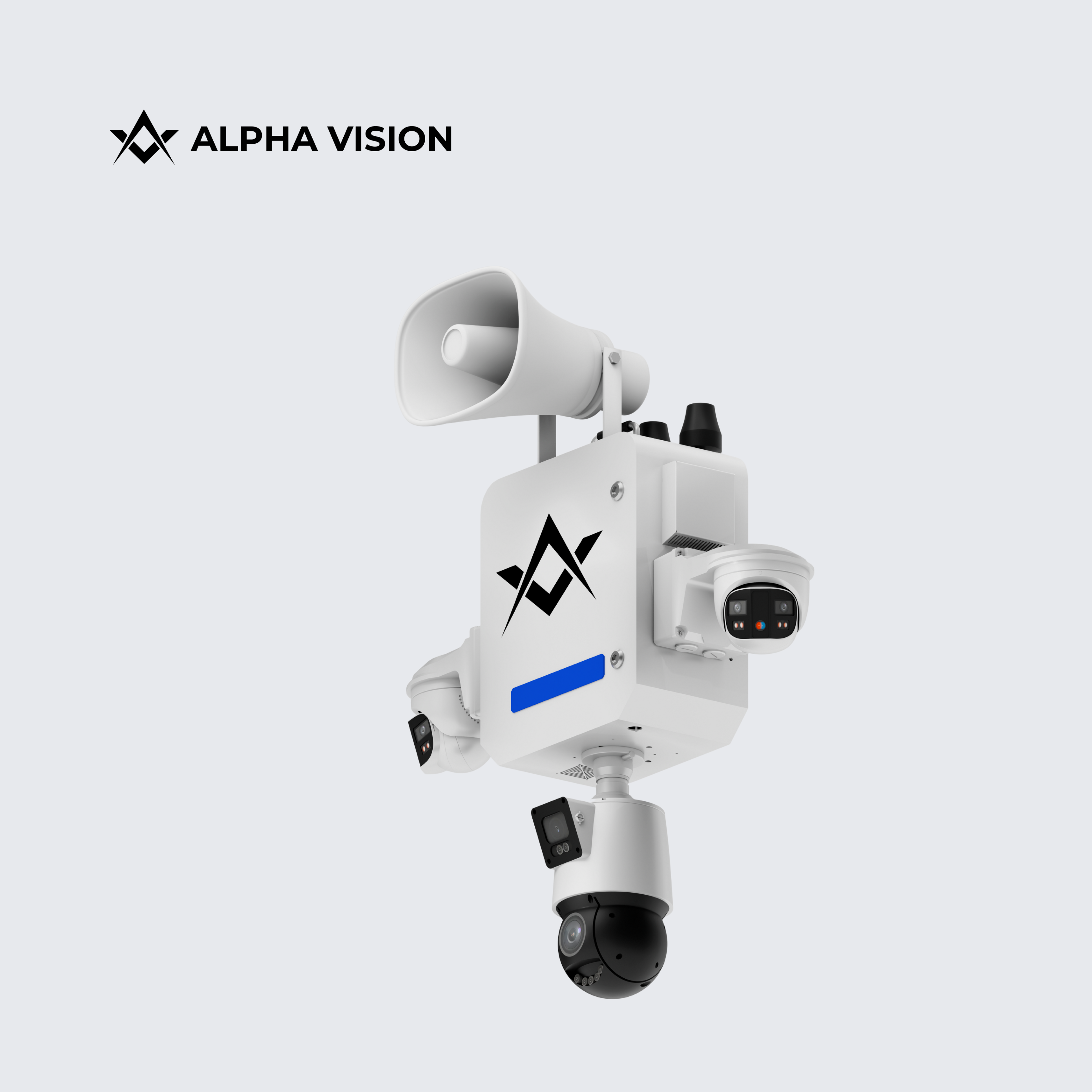

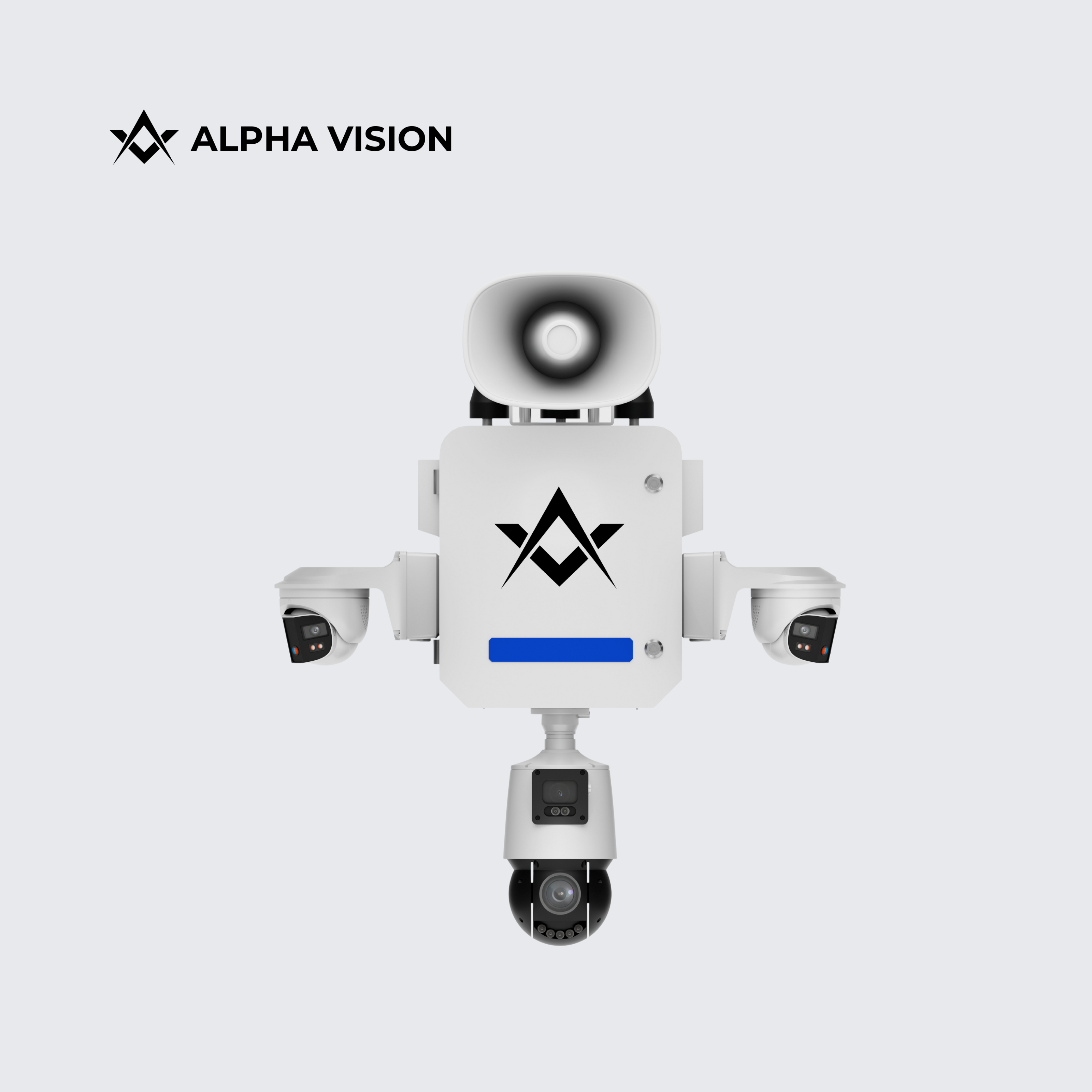

The Alpha Vision Guard Box Pro is a fully integrated, enterprise-grade mobile surveillance solution designed for remote and off-grid security. It includes a PTZ camera, a 180° panoramic camera, an IP speaker, and is powered by advanced AI agents.

What makes the Guard Box Pro ideal for off-grid locations?

It is a compact, all-in-one unit with a rugged design, flexible power options (DC and PoE), and autonomous AI capabilities, making it perfect for locations without existing infrastructure.

How do the two cameras work together?

The 8MP panoramic camera provides a constant 180° overview of the entire scene, while the 4MP PTZ camera can be used to zoom in on specific details or automatically track subjects of interest.

What is the maximum zoom capability of the PTZ camera?

The PTZ camera features a powerful 25x optical zoom.

Does the panoramic camera work well at night?

Yes, it is equipped with Colorhunter technology that ensures high-quality, full-color images 24 hours a day, even in extremely low light conditions.

How does the AI deterrence work?

The AI Virtual Guard agent can detect suspicious activities in real time and trigger the 130 dB IP speaker to play automated warning messages or alarms, actively deterring intruders.

What is the AI Inspector?

The AI Inspector is an autonomous AI agent that serves as a digital guard, following scheduled patrol routes with the PTZ camera to proactively detect and deter threats.

Can I find video clips easily?

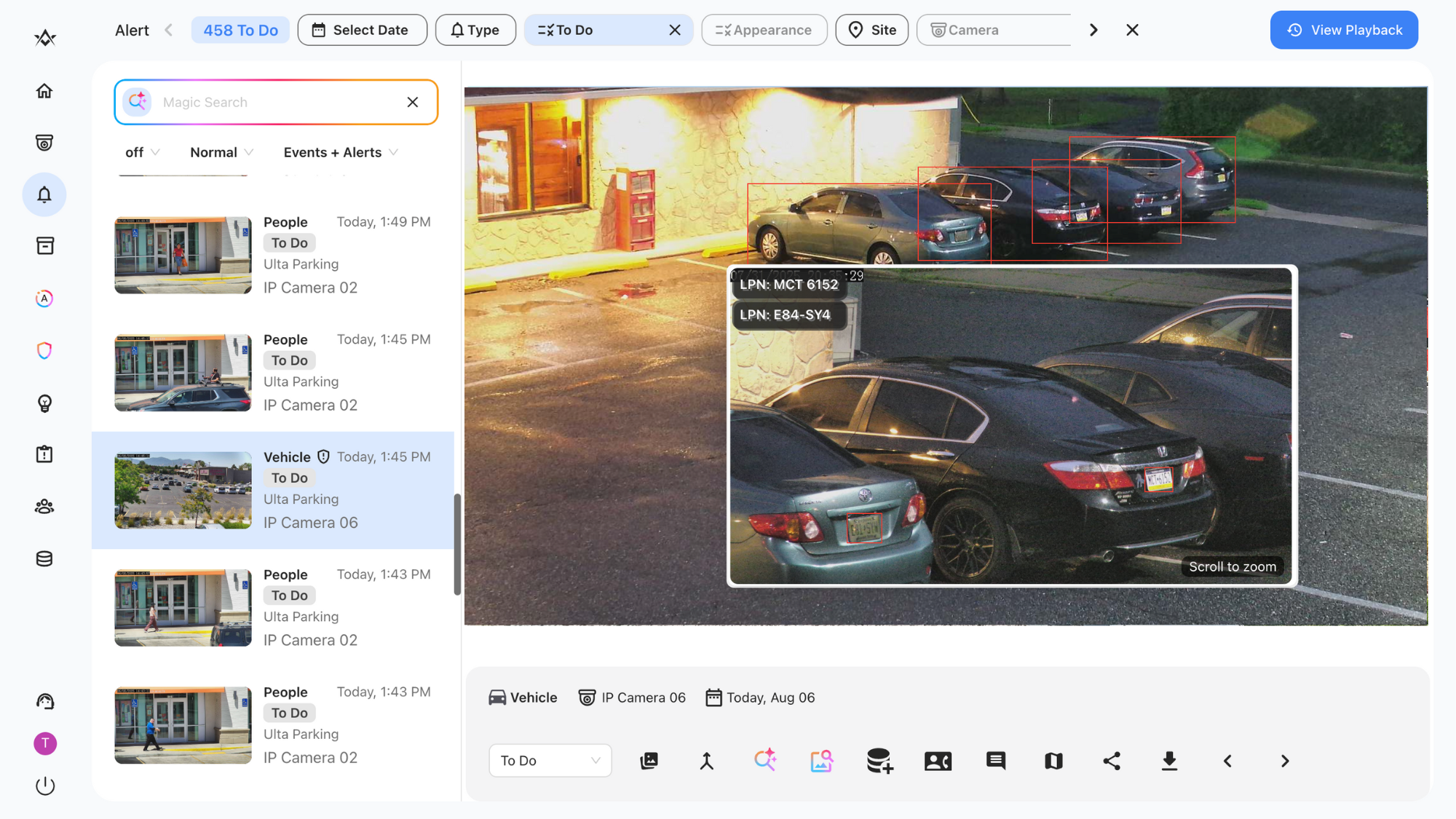

Yes, the AI Investigator agent allows you to search through hours of footage in seconds using natural language queries (e.g., "show me all red trucks") or by uploading an image.

Is the unit durable enough for harsh weather

Absolutely. The components have IP66 and IP67 protection ratings, making them resistant to dust, rain, and extreme temperatures. The panoramic camera is also IK10 vandal-resistant.

What are the power requirements?

The system is versatile, supporting both low-voltage DC power and Power over Ethernet (PoE/PoE+), which simplifies wiring and installation.

How much video footage can be stored?

The panoramic camera supports a Micro SD card up to 512 GB for on-device edge storage, ensuring recordings are saved even if network connectivity is lost.

Can the Guard Box Pro integrate with our existing security system?

Yes, the cameras are ONVIF compliant (Profile S, G, T), allowing for seamless integration with most third-party video management systems (VMS) and network video recorders (NVRs).

What is Smart Intrusion Prevention?

This intelligent feature uses target classification to distinguish between humans, vehicles, and other objects, significantly reducing false alarms caused by irrelevant motion like animals or weather.

How loud is the included speaker?

The integrated IP speaker is very powerful, capable of producing a maximum sound pressure of 130 dBSPL, which is effective for deterrence over long distances.

What are the primary use cases for the Guard Box Pro?

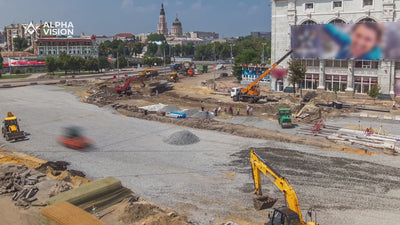

It is ideal for securing construction sites, utility substations, large parking lots, remote infrastructure, outdoor events, and any large area requiring proactive, mobile surveillance without permanent infrastructure.
