Bring High-Definition Surveillance to Any Location with the Uniview 4G ColorHunter Camera

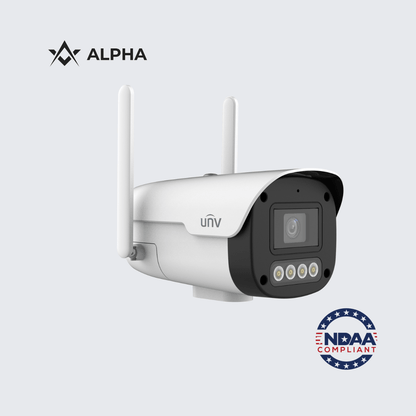

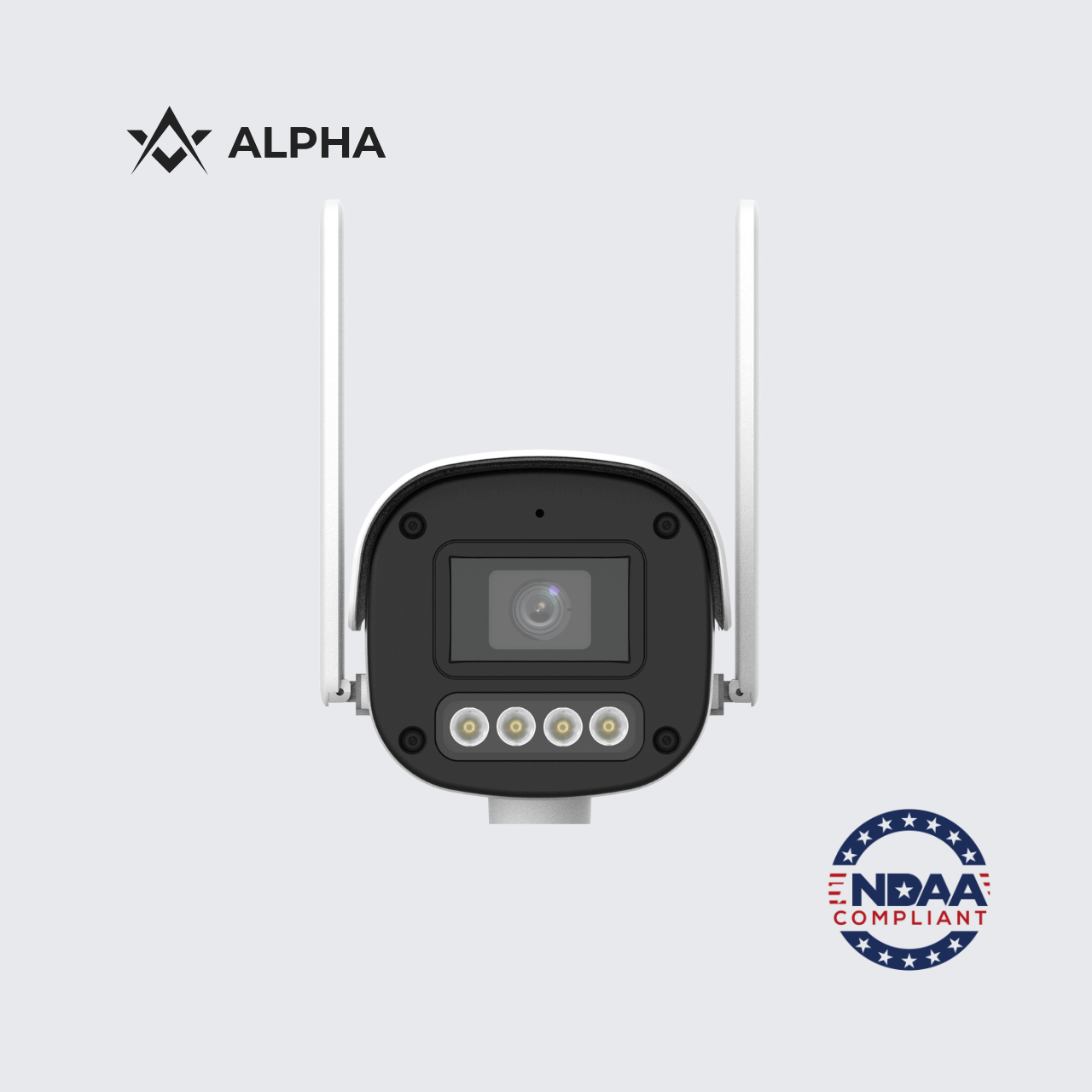

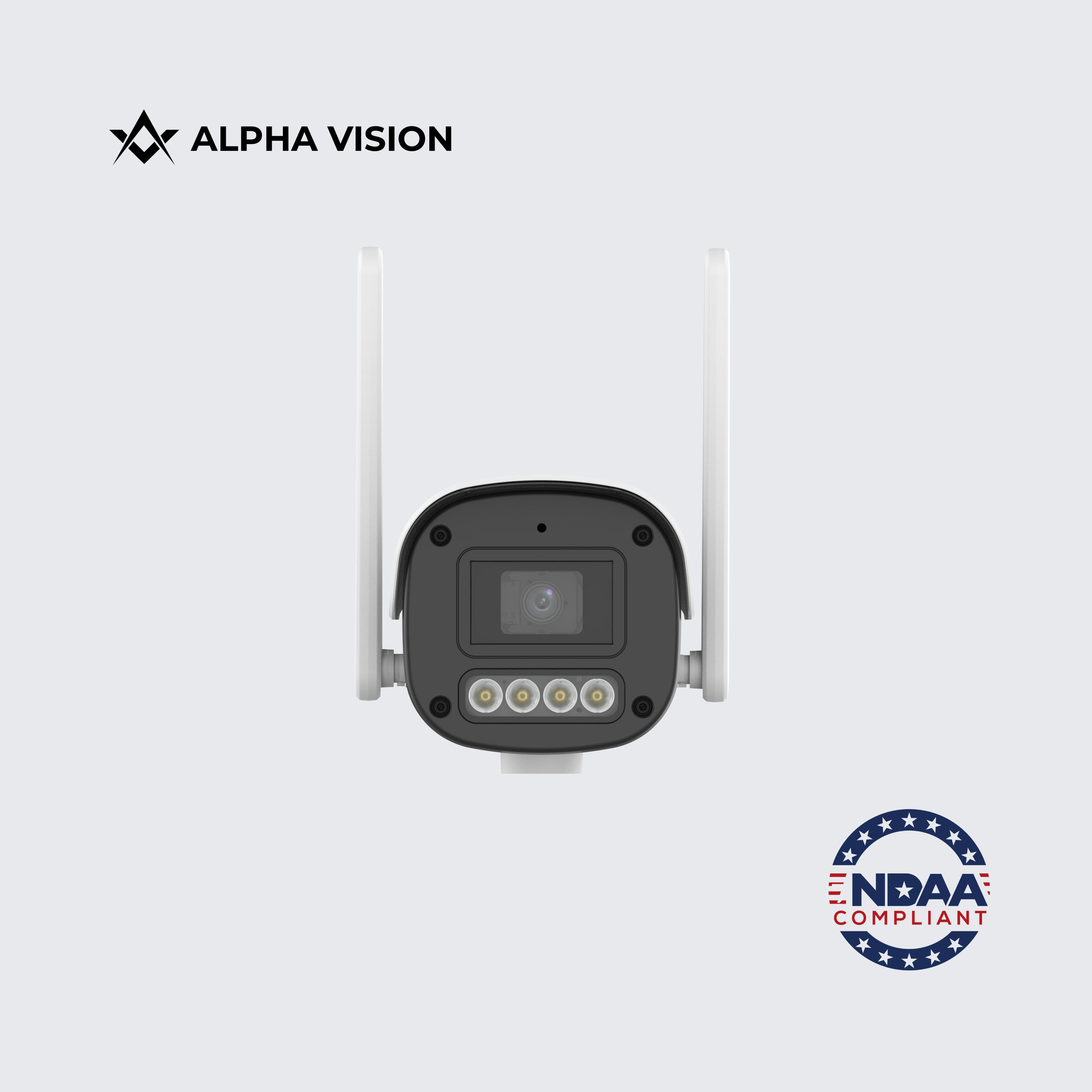

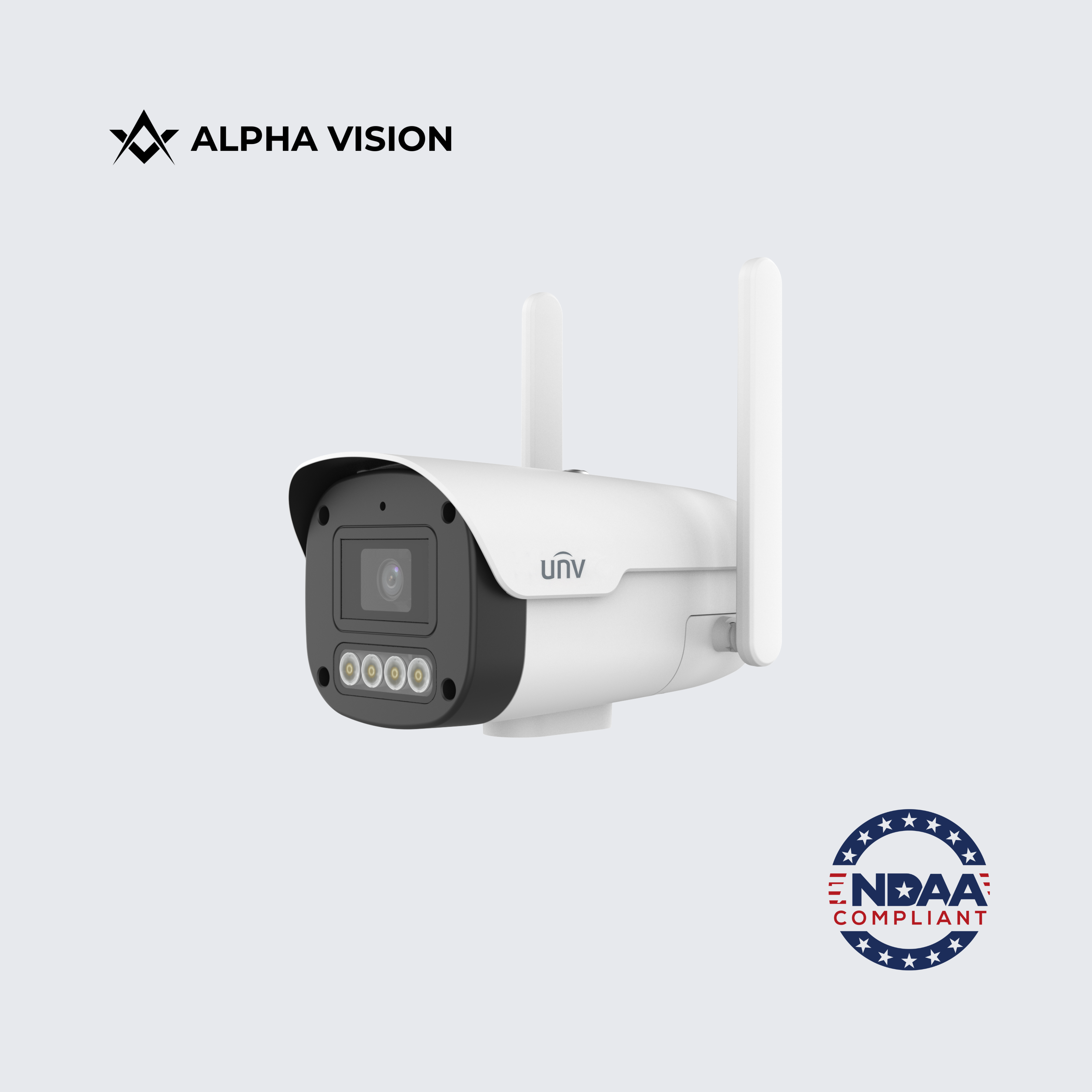

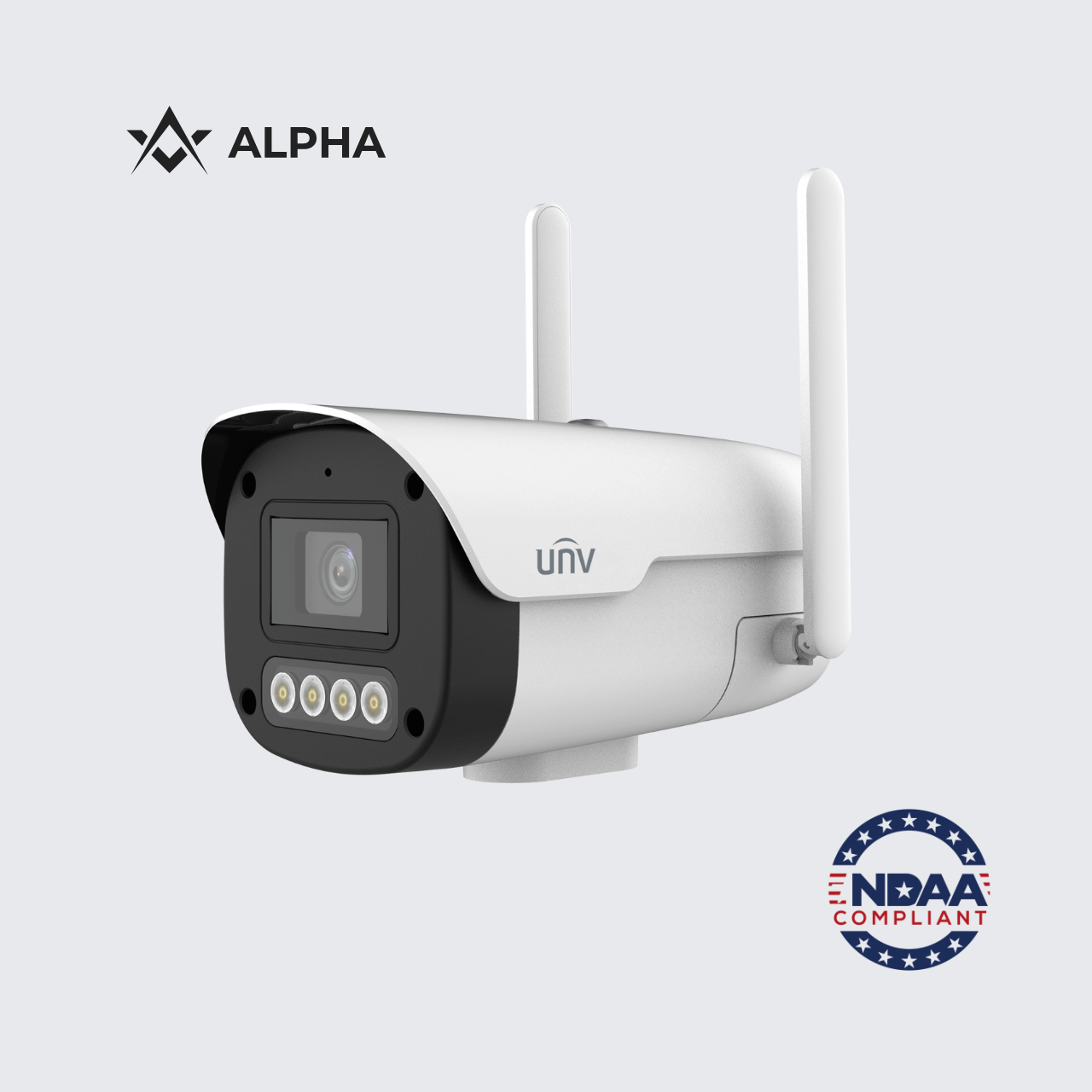

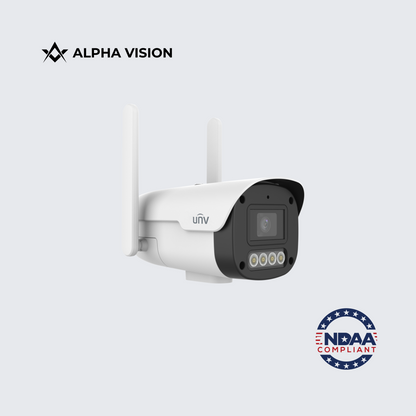

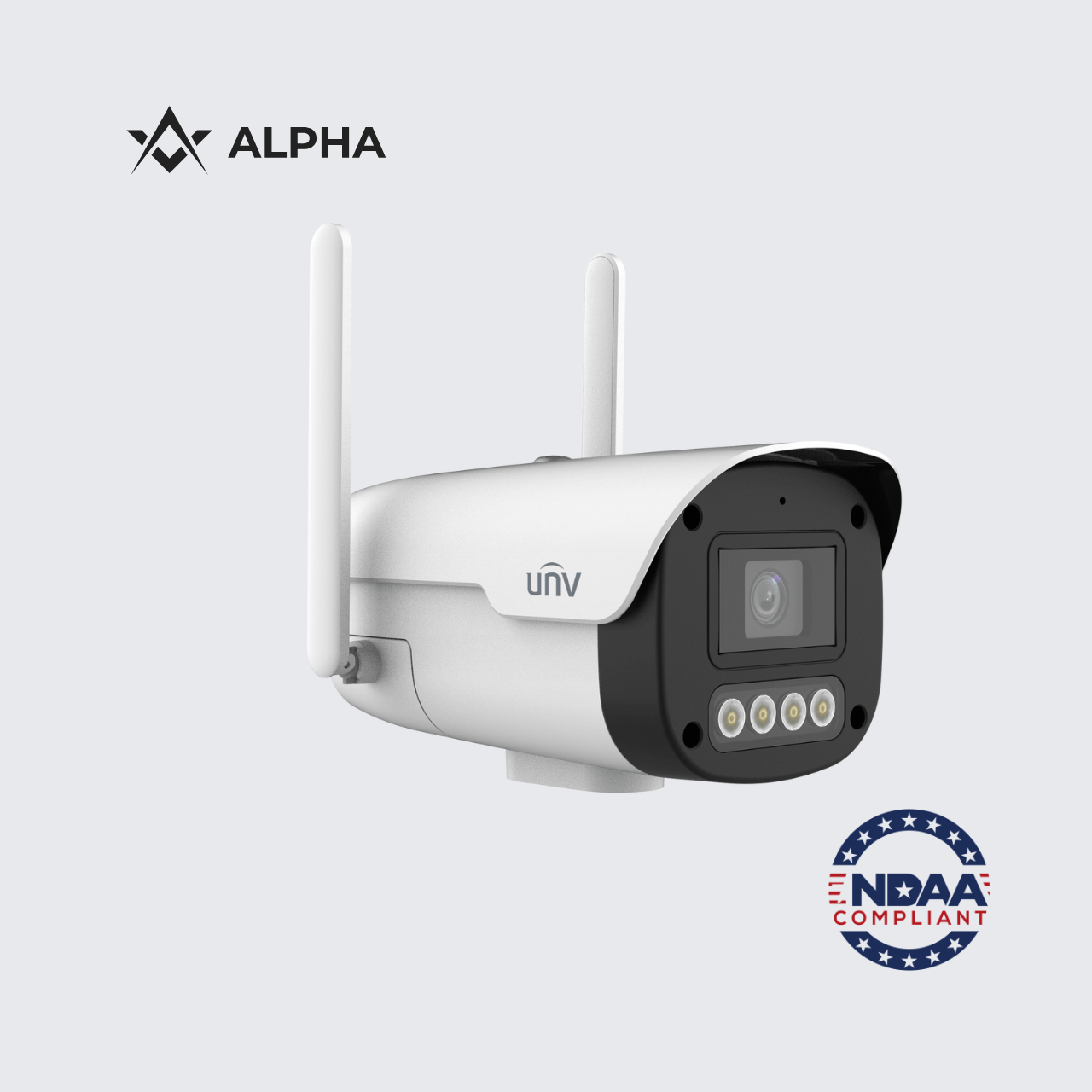

Secure your most remote and challenging locations with the Uniview IPC2A14LP-ADF40KC-4G-E, a powerful 4MP HD 4G Wireless ColorHunter Fixed Bullet Camera. Designed for areas without traditional internet access, this camera provides reliable, high-quality surveillance for job sites, construction zones, rural properties, parking lots, and any off-grid application. With its built-in 4G connectivity, you can stream and record crystal-clear video from anywhere, directly to your mobile device.

The revolutionary ColorHunter technology ensures you get brilliant, full-color video 24/7. Unlike traditional cameras that switch to black and white in low light, the ColorHunter camera uses a warm, white light illuminator to capture vivid color detail, even in complete darkness. This feature is critical for accurate subject identification and capturing usable evidence.

Built to withstand the elements, the IPC2A14LP-ADF40KC-4G-E is IP67 rated, making it fully protected against dust and water. Combined with its on-board storage via a microSD card slot and two-way audio capabilities, this 4G camera is the ultimate all-in-one security solution for locations beyond the reach of conventional infrastructure.

Benefits of the Uniview 4G ColorHunter Camera:
  • Ultimate Connectivity: The built-in 4G LTE module allows you to deploy the camera anywhere with cellular service, eliminating the need for Wi-Fi or wired internet.

  • 24/7 Full-Color Imaging: ColorHunter technology provides vibrant, detailed color video day and night, ensuring you never miss a critical detail.

  • Crisp HD Resolution: The 4MP high-resolution sensor captures sharp, clear footage, allowing you to zoom in on details without losing quality.

  • Remote Monitoring Made Easy: Access live video, receive alerts, and communicate through the built-in speaker and microphone directly from the Uniview mobile app.

  • Reliable On-Board Storage: With support for up to a 512GB microSD card, you can record footage directly to the camera, ensuring you have a backup even if the network is interrupted.

  • Durable and Weatherproof: The rugged IP67-rated housing protects the camera from harsh weather conditions, making it ideal for any outdoor environment.

  • Flexible Power Options: Power the camera with a standard 12VDC connection or pair it with an optional solar panel kit for a truly off-grid, self-sustaining security solution.

FAQs for

How does the 4G connectivity work on this camera

The camera has a built-in 4G LTE module and SIM card slot. You will need to obtain a data-only SIM card from a cellular provider (like AT&T, T-Mobile, or Verizon). Once activated, the camera uses the cellular network to transmit video and data, just like a smartphone.

What kind of data plan do I need for this camera?

The required data plan depends on your usage, such as how often you live-stream and the video quality you select. We recommend starting with a plan of at least 5-10GB per month and monitoring your usage to adjust as needed.

Can this camera be powered by solar?

Yes, this camera is fully compatible with optional solar panel kits (SLR-B160P60 or SLR-B320P60). This makes it a perfect solution for off-grid locations where running power is not feasible.

How much video can be stored on a microSD card

With support for up to a 512GB card, you can store weeks of continuous or motion-activated recordings. The exact amount depends on the resolution, frame rate, and compression settings.

Is the camera difficult to set up?

No, the setup is straightforward. Simply insert an activated SIM card, connect the power source, and scan the QR code using the Uniview mobile app to add the camera to your account for remote viewing.

Can I view the live feed and recordings from my smartphone?

Absolutely. The free Uniview mobile app (EZView) for iOS and Android allows you to view live video, playback recorded footage, and manage camera settings from anywhere in the world.

What is the benefit of ColorHunter technology over standard IR night vision?

ColorHunter technology provides full-color images in low-light conditions, which is crucial for identifying details like clothing color, vehicle color, and other features that are lost in black-and-white infrared video.

Is this camera durable enough for outdoor use?

Yes, the camera has an IP67 weatherproof rating, which means it is fully protected against dust ingress and can be submerged in water up to 1 meter for 30 minutes. It is designed to handle harsh outdoor conditions.

Does the IPC2A14LP-ADF40KC-4G-E have two-way audio?

Yes, it features a built-in microphone and speaker, enabling two-way communication. You can listen to what's happening and speak through the camera using the mobile app.

Is this camera NDAA compliant?

Yes, this Uniview model is NDAA compliant, making it suitable for installation in U.S. federal government properties and other facilities that require compliant security equipment.

Tech Specs for
Tech Specs
  • Image Sensor: 1/3" 4.0 Megapixel, Progressive Scan, CMOS
  • Resolution: 4MP (2560 x 1440) @ 30fps
  • Lens: 4.0mm Fixed Lens
  • Angle of View (H): 81.3°
  • Video Compression: Ultra 265, H.265, H.264, MJPEG
  • Cellular Connectivity:
  • Night Vision:
  • Audio:
  • Alarm:
  • On-board Storage: Built-in MicroSD card slot, supports up to 512 GB
  • Smart Features: Motion Detection, Intrusion Detection, Cross Line Detection
  • WDR: 120dB True WDR (Wide Dynamic Range)
  • Power: 12V DC (Power supply not included)
  • Weatherproof Rating: IP67
  • Operating Conditions: -22°F ~ 140°F (-30°C ~ 60°C)
  • NDAA Compliant: Yes
