IPC3634SS-ADF28KMC-I1 | Uniview 4MP Fixed Lens Eyeball Camera
IPC3634SS-ADF28KMC-I1 | Uniview 4MP Fixed Lens Eyeball Camera
IPC3634SS-ADF28KMC-I1 | Uniview 4MP Fixed Lens Eyeball Camera

Uniview

IPC3634SS-ADF28KMC-I1

IPC3634SS-ADF28KMC-I1 | Uniview 4MP Fixed Lens Eyeball Camera

$489.00 USD
Need help?

References

References and Documentation

Detailed Description

Product Description

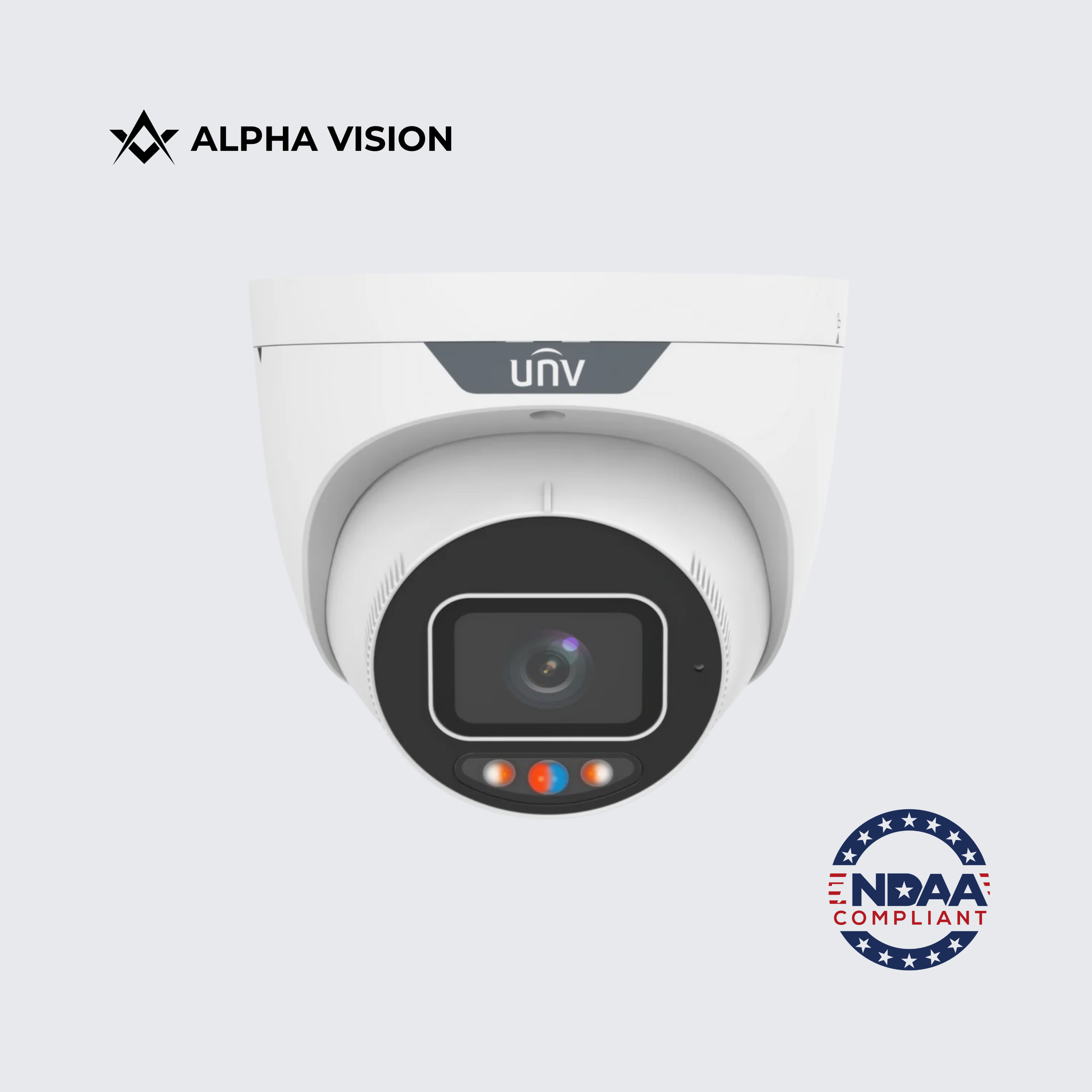

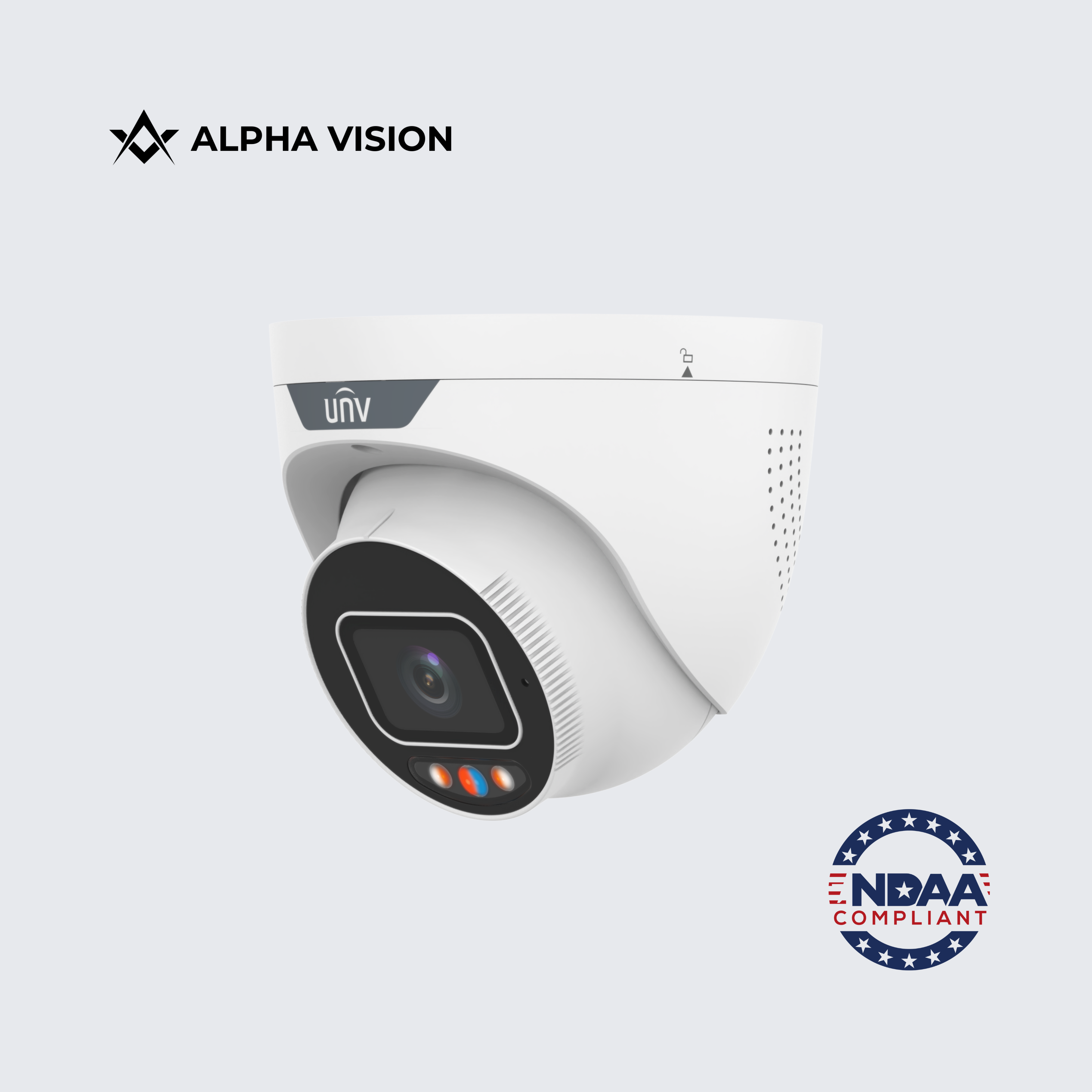

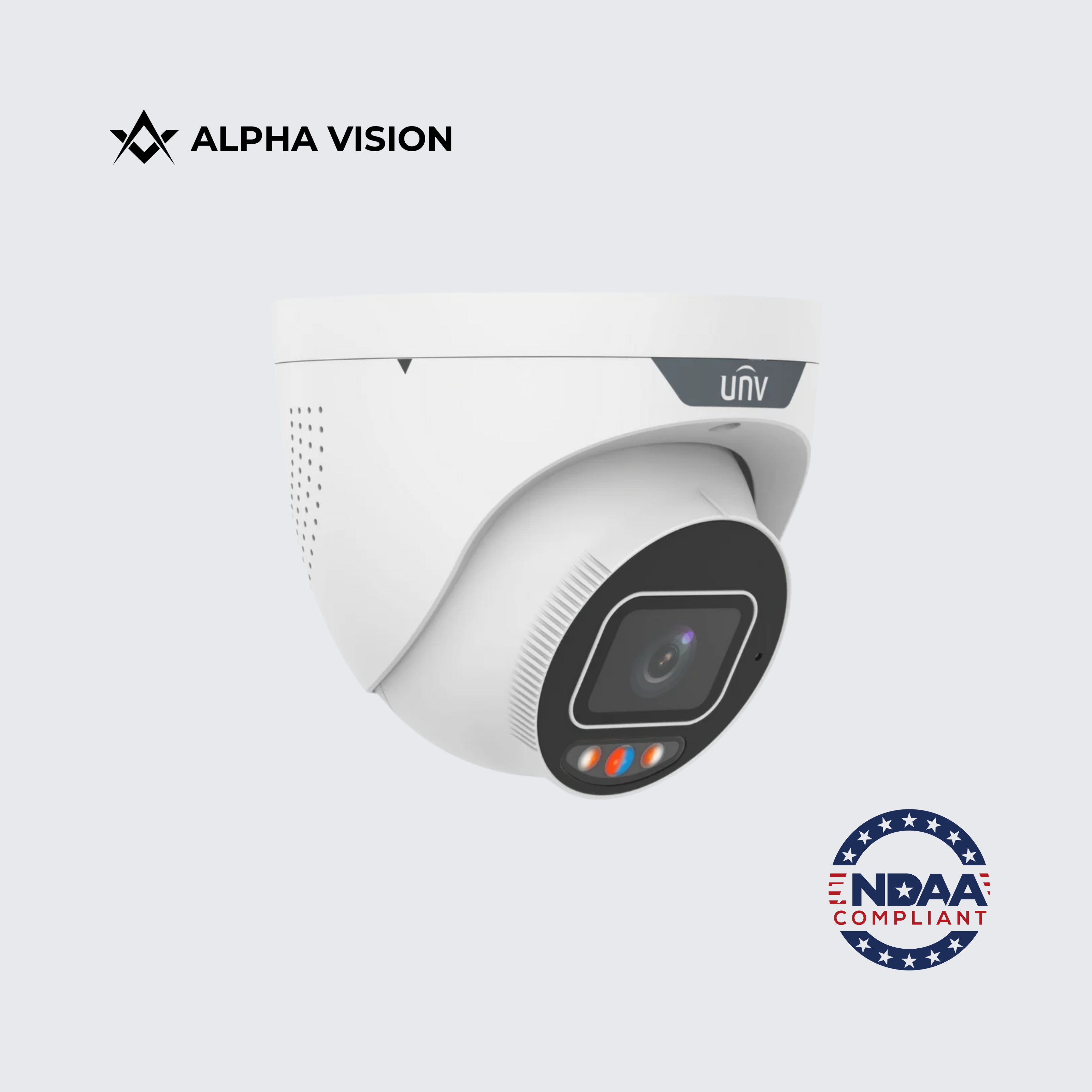

The Uniview IPC3634SS-ADF28KMC-I1 is a 4MP HD Intelligent LightHunter IR Fixed Eyeball Network Camera engineered for professional-grade surveillance. With its advanced 1/2.7" CMOS sensor, this camera delivers crisp 4MP video resolution at up to 2688×1520, ensuring clear and detailed footage in diverse lighting environments. The IPC3634SS-ADF28KMC-I1 features a 2.8mm fixed lens with a wide horizontal field of view, allowing effective monitoring of large areas.

Equipped with Smart IR technology, the camera provides reliable night vision coverage up to 30 meters. Supporting Ultra 265, H.265, H.264, and MJPEG video compression, the IPC3634SS-ADF28KMC-I1 optimizes bandwidth and storage efficiency without compromising video quality. It offers smart detection features including cross line detection, intrusion detection, enter area detection, and leave area detection, ensuring proactive security coverage.

The camera’s rugged design includes IP67 weatherproof and IK10 vandal-resistant ratings, making it suitable for both indoor and outdoor installations. Power over Ethernet (PoE) simplifies installation, while edge storage via microSD card (up to 512GB) provides flexible recording options. Enhanced by 130dB true Wide Dynamic Range (WDR), the IPC3634SS-ADF28KMC-I1 ensures optimal performance even in challenging lighting conditions.



FAQs for

What resolution does the Uniview IPC3634SS-ADF28KMC-I1 camera support?

The IPC3634SS-ADF28KMC-I1 supports up to 4MP resolution (2688×1520) at 30 frames per second, delivering high-definition video for detailed surveillance.

What type of lens is available on the IPC3634SS-ADF28KMC-I1?

This model features a 2.8mm fixed lens, offering a wide-angle field of view ideal for monitoring large areas effectively.

Does the Uniview IPC3634SS-ADF28KMC-I1 offer night vision capabilities?

Yes, the camera includes Smart IR technology that provides clear infrared night vision coverage up to 30 meters.

What are the smart detection features included in the IPC3634SS-ADF28KMC-I1?

The smart detection features include cross line detection, intrusion detection, enter area detection, and leave area detection, supporting proactive security measures.

Is the IPC3634SS-ADF28KMC-I1 camera suitable for outdoor installation?

Yes, the camera is IP67-rated for weatherproof protection and IK10-rated for vandal resistance, making it highly durable for outdoor and high-risk environments.

How is the Uniview IPC3634SS-ADF28KMC-I1 powered?

The camera supports Power over Ethernet (PoE), allowing both power and data to be delivered through a single Ethernet cable for simplified installation.

What video compression formats are supported by the IPC3634SS-ADF28KMC-I1?

It supports Ultra 265, H.265, H.264, and MJPEG compression formats, enabling efficient use of bandwidth and storage.

Can the Uniview IPC3634SS-ADF28KMC-I1 record footage locally?

Yes, the camera has an edge storage option with a microSD card slot that supports up to 512GB of storage.

Does the IPC3634SS-ADF28KMC-I1 support a wide dynamic range?

Yes, the camera is equipped with 130dB true Wide Dynamic Range (WDR), ensuring clear images in challenging lighting conditions with both bright and dark areas.

Is the IPC3634SS-ADF28KMC-I1 compatible with mobile monitoring?

Yes, the camera is compatible with Uniview’s EZView mobile app and ONVIF standards, allowing easy remote access and integration with various security systems.

Tech Specs for

Image Sensor: 1/3" Progressive Scan CMOS

Maximum Resolution: 2688 × 1520 (4MP)

Lens Options: 2.8 mm fixed lens

Night Vision (IR Distance): Up to 30 meters (98 feet) Smart IR

Video Compression: Ultra 265, H.265, H.264, MJPEG

Smart Detection Features: Motion detection, tampering alarm, human body detection, intrusion detection, cross line detection

Weatherproof Rating: IP67, suitable for indoor and outdoor use

Vandal Resistance: IK10 impact-resistant housing

Audio Capability: Built-in microphone, G.711 audio compression

Power Supply: 12V DC ±25%, PoE (IEEE 802.3af)

Edge Storage: Supports Micro SD card up to 256GB, ANR (Automatic Network Replenishment), NAS (NFS)

Wide Dynamic Range (WDR): 120 dB True WDR for clear images in challenging lighting

Network Compatibility: ONVIF (Profiles S, G, T), API, SDK integration support

Operating Conditions: -30°C to +60°C (-22°F to +140°F), humidity ≤95% (non-condensing)

Dimensions: 122 × 88 mm (4.8” × 3.5”)

Weight: Approximately 0.47 kg (1.04 lb)
