Detailed Description

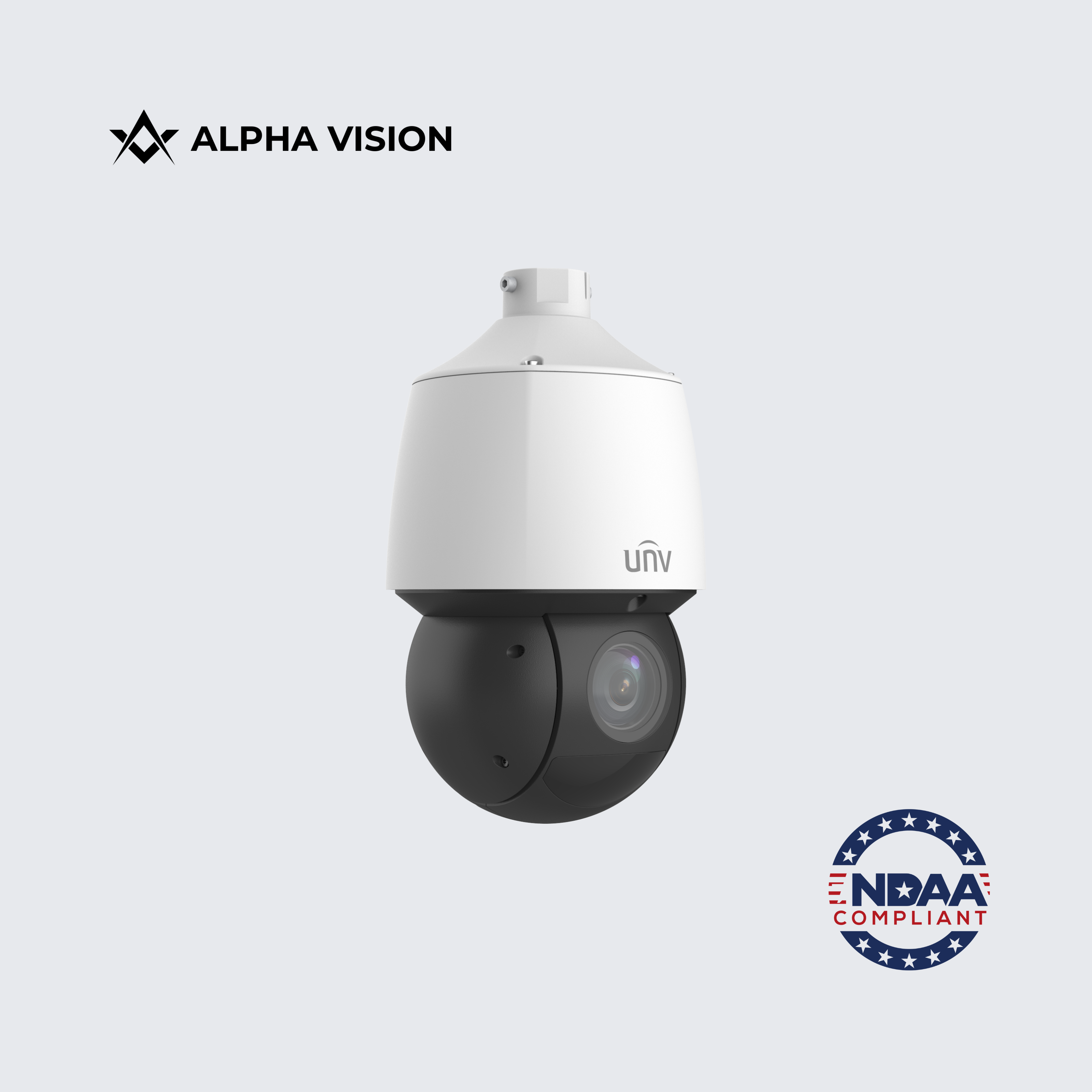

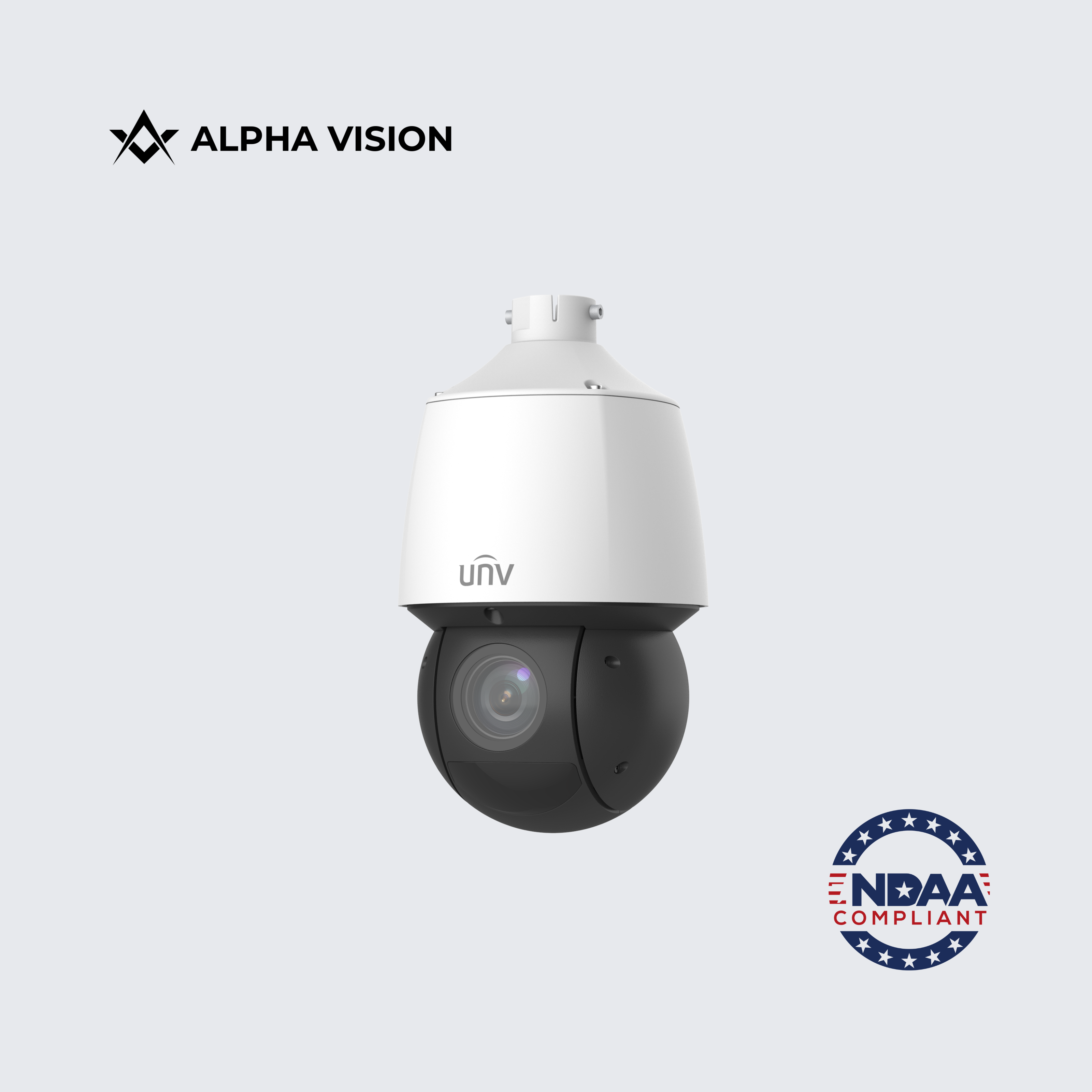

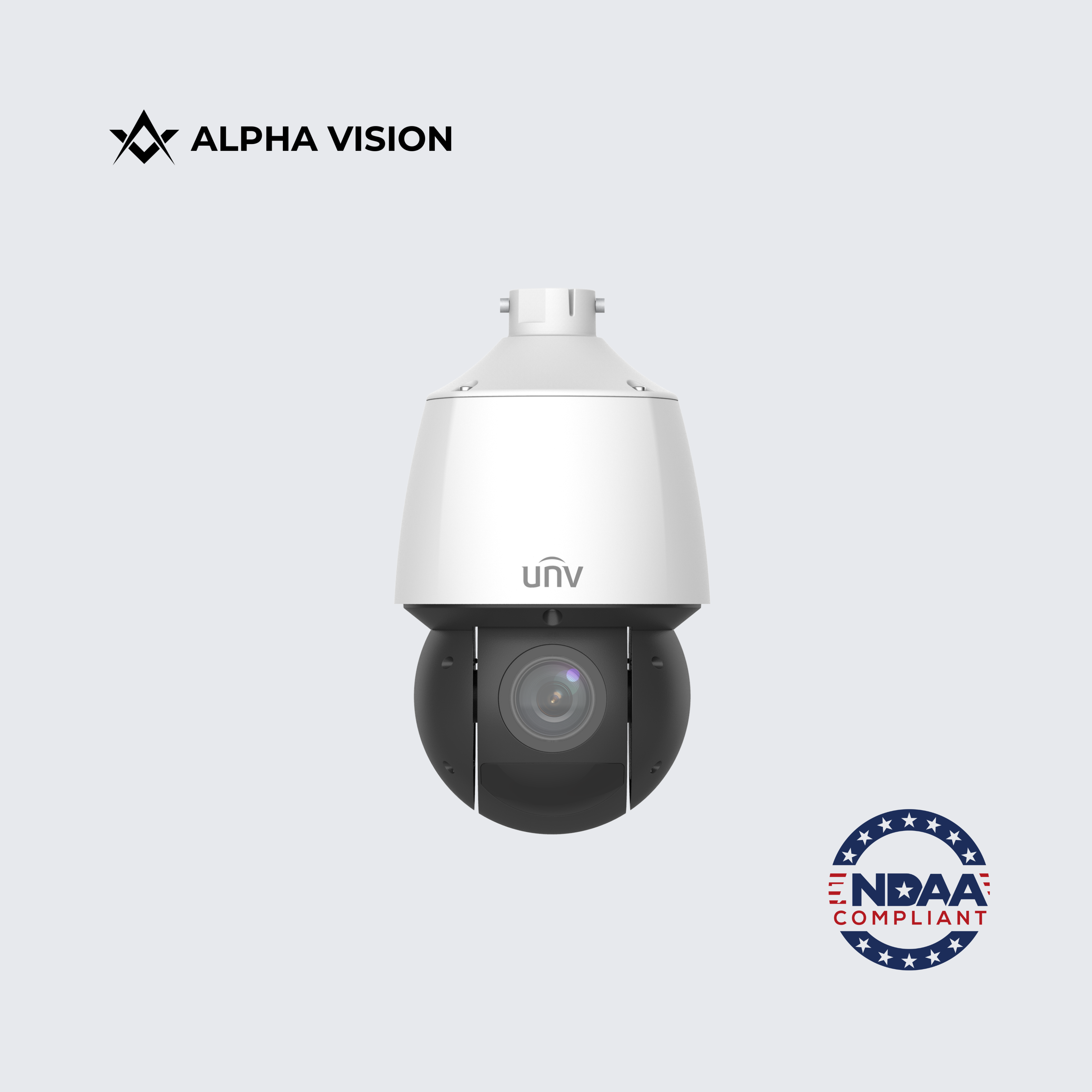

Uniview IPC6424SR-X25-VF is a 4MP LightHunter PTZ Dome Network Camera engineered for superior performance in demanding surveillance environments. Featuring a 25x optical zoom (4.8–120mm motorized lens), this PTZ camera provides exceptional coverage and detail, making it ideal for monitoring large outdoor areas such as parking lots, campuses, and industrial sites. With Smart IR technology offering up to 100 meters of night vision, the IPC6424SR-X25-VF ensures reliable image clarity even in low-light conditions. The camera supports Ultra 265, H.265, H.264, and MJPEG compression formats, optimizing storage and bandwidth without compromising video quality. Built to endure harsh weather conditions with an IP67 rating and IK10 vandal resistance, it also includes smart detection features like intrusion detection, line crossing, and area monitoring. Power over Ethernet Plus (PoE+) capability further simplifies installation, while remote access through the EZView app allows flexible monitoring from anywhere.



FAQs for

What is the maximum resolution of the Uniview IPC6424SR-X25-VF?

The IPC6424SR-X25-VF supports up to 4MP resolution (2688 × 1520) at 30 frames per second, delivering high-definition video for clear image capture.

How far can the Uniview IPC6424SR-X25-VF see at night?

Thanks to its Smart IR technology, the IPC6424SR-X25-VF offers night vision capabilities of up to 100 meters (328 feet), ensuring excellent low-light performance.

Does the Uniview IPC6424SR-X25-VF support optical zoom, and how much?

Yes, the camera features a 25x optical zoom with a motorized varifocal lens ranging from 4.8mm to 120mm, allowing precise zooming without losing image quality.

What are the smart detection features available on the Uniview IPC6424SR-X25-VF?

This camera supports advanced smart detection functions, including intrusion detection, cross line detection, enter/leave area detection, people counting, and crowd density monitoring.

Is the Uniview IPC6424SR-X25-VF weatherproof and vandal-resistant?

Yes, the camera is rated IP67 for dust and water resistance and IK10 for vandal resistance, making it suitable for both outdoor and harsh environments.

Can the Uniview IPC6424SR-X25-VF be powered via PoE?

Absolutely. The camera supports Power over Ethernet Plus (PoE+), allowing both power and data to be transmitted over a single Ethernet cable, simplifying installation.

What storage options are available on the Uniview IPC6424SR-X25-VF?

The IPC6424SR-X25-VF supports edge storage through a microSD card slot with capacity up to 512GB, providing local recording backup.

How can users remotely access the Uniview IPC6424SR-X25-VF?

Remote access is available via Uniview's EZView mobile app and through ONVIF-compatible platforms, allowing users to monitor and manage the camera from anywhere.

What kind of wide dynamic range does the Uniview IPC6424SR-X25-VF offer?

The camera features 120dB true Wide Dynamic Range (WDR) technology, ensuring balanced exposure and clear imaging even in challenging lighting situations with high contrast.

Is the Uniview IPC6424SR-X25-VF suitable for large outdoor surveillance projects?

Yes, with its powerful zoom, wide coverage, weatherproof design, and smart analytics, this camera is well-suited for large-scale outdoor security applications such as industrial sites, commercial facilities, public spaces, and transportation hubs.

Tech Specs for

Audio Capability: Built-in microphone and speaker, two-way audio, G.711 audio compression

Weatherproof Rating: IP66, suitable for indoor and outdoor use

Wide Dynamic Range (WDR): 120 dB True WDR for clear images in challenging lighting

Edge Storage: Supports Micro SD card up to 256GB, ANR (Automatic Network Replenishment), NAS (NFS)

Power Supply: 12V DC ±25%, PoE (IEEE 802.3at)

Network Compatibility: ONVIF (Profiles S, G, T), API, SDK integration support

Operating Conditions: -30°C to +60°C (-22°F to +140°F), humidity ≤95% (non-condensing)

Dimensions: Φ190 × 332 mm (Φ7.5” × 13.1”)

Weight: Approximately 4.5 kg (9.9 lb)

Optical Zoom: 25× optical zoom for flexible long-range monitoring
