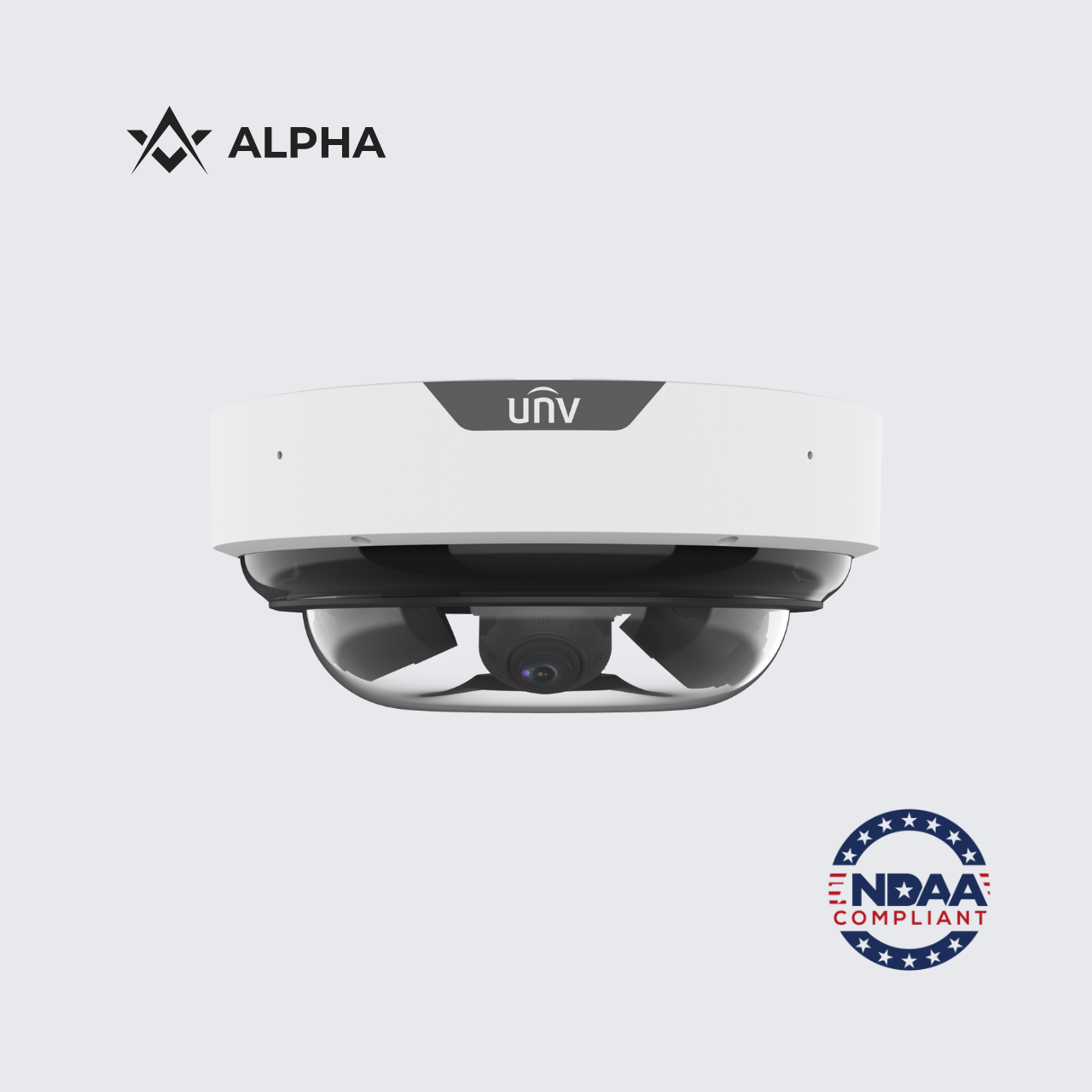

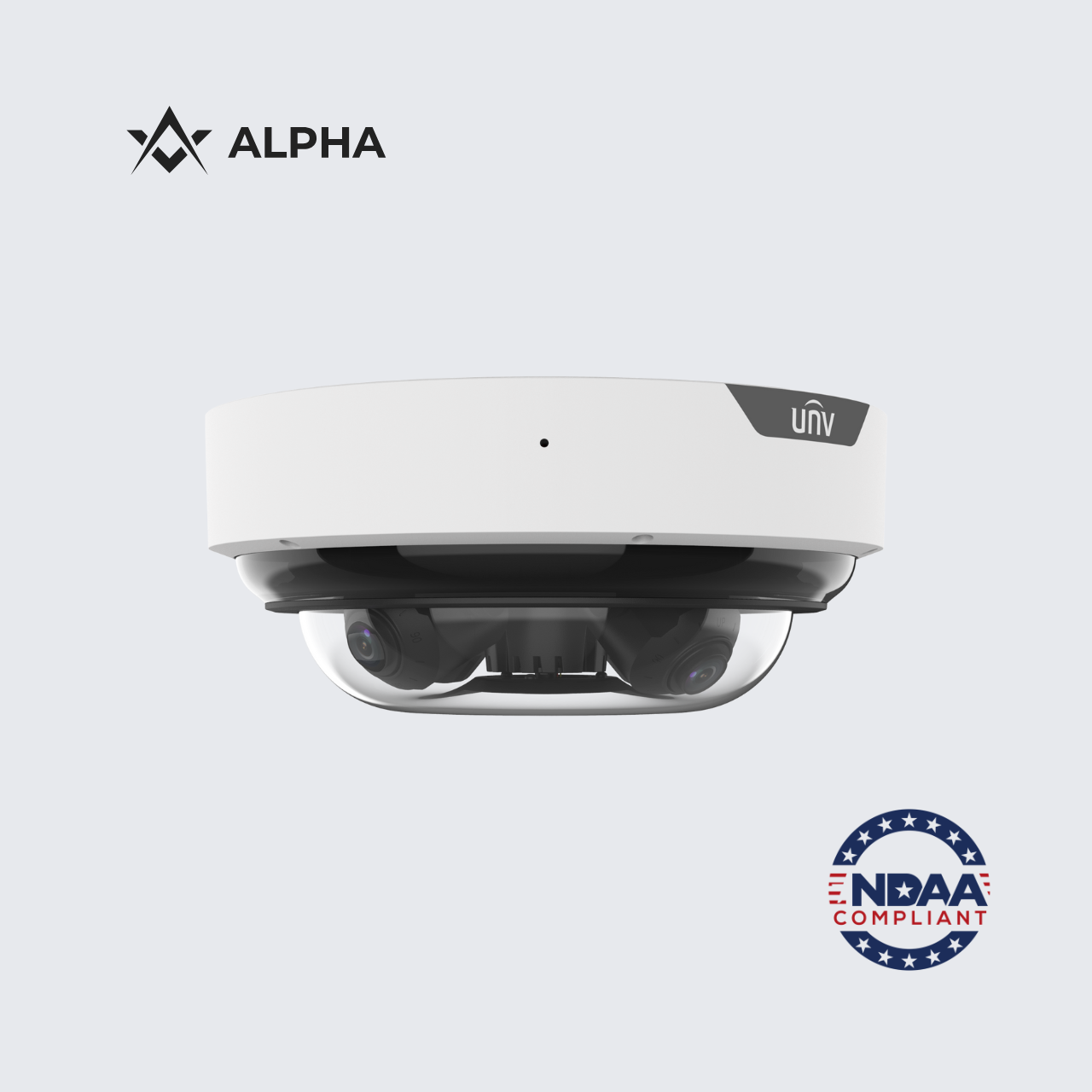

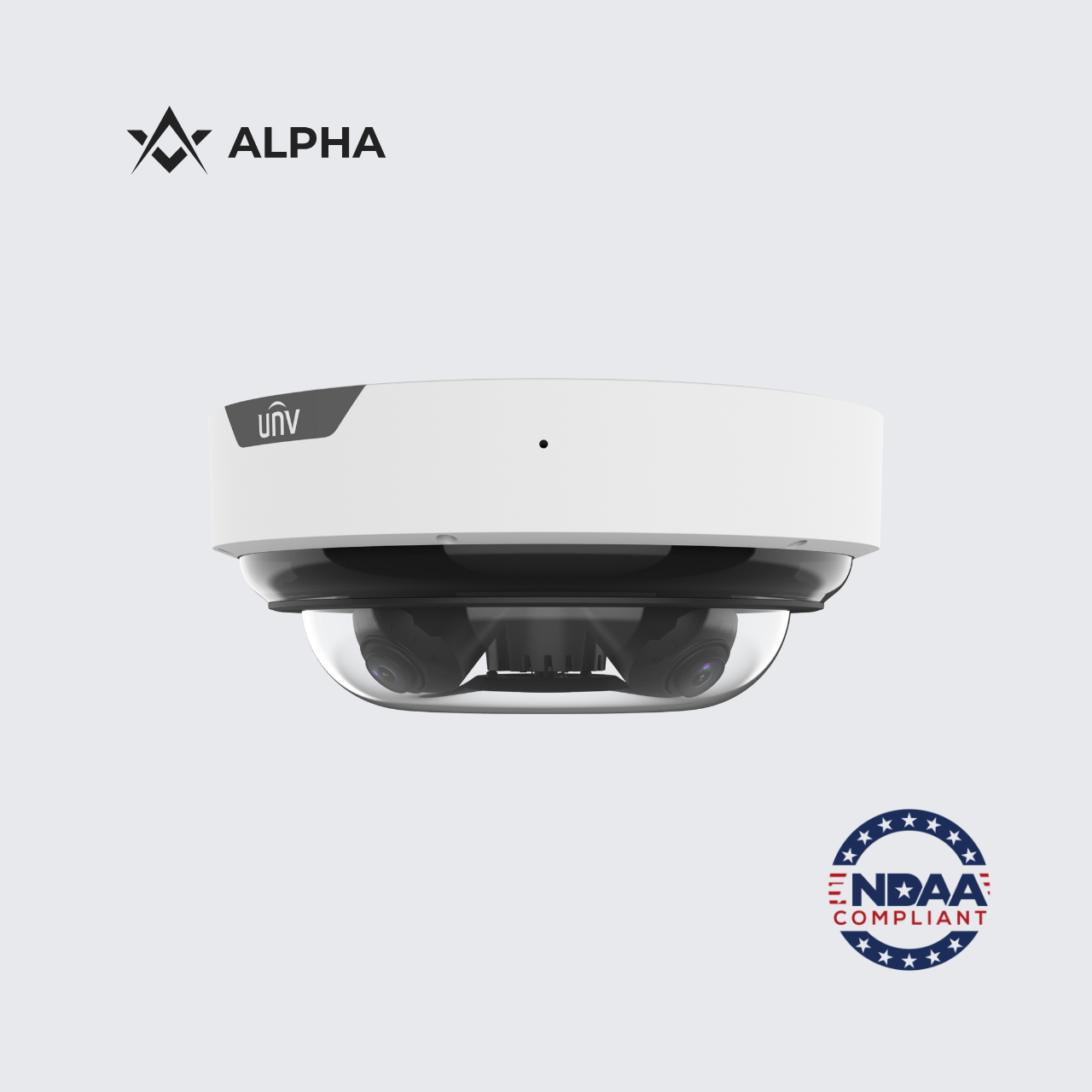

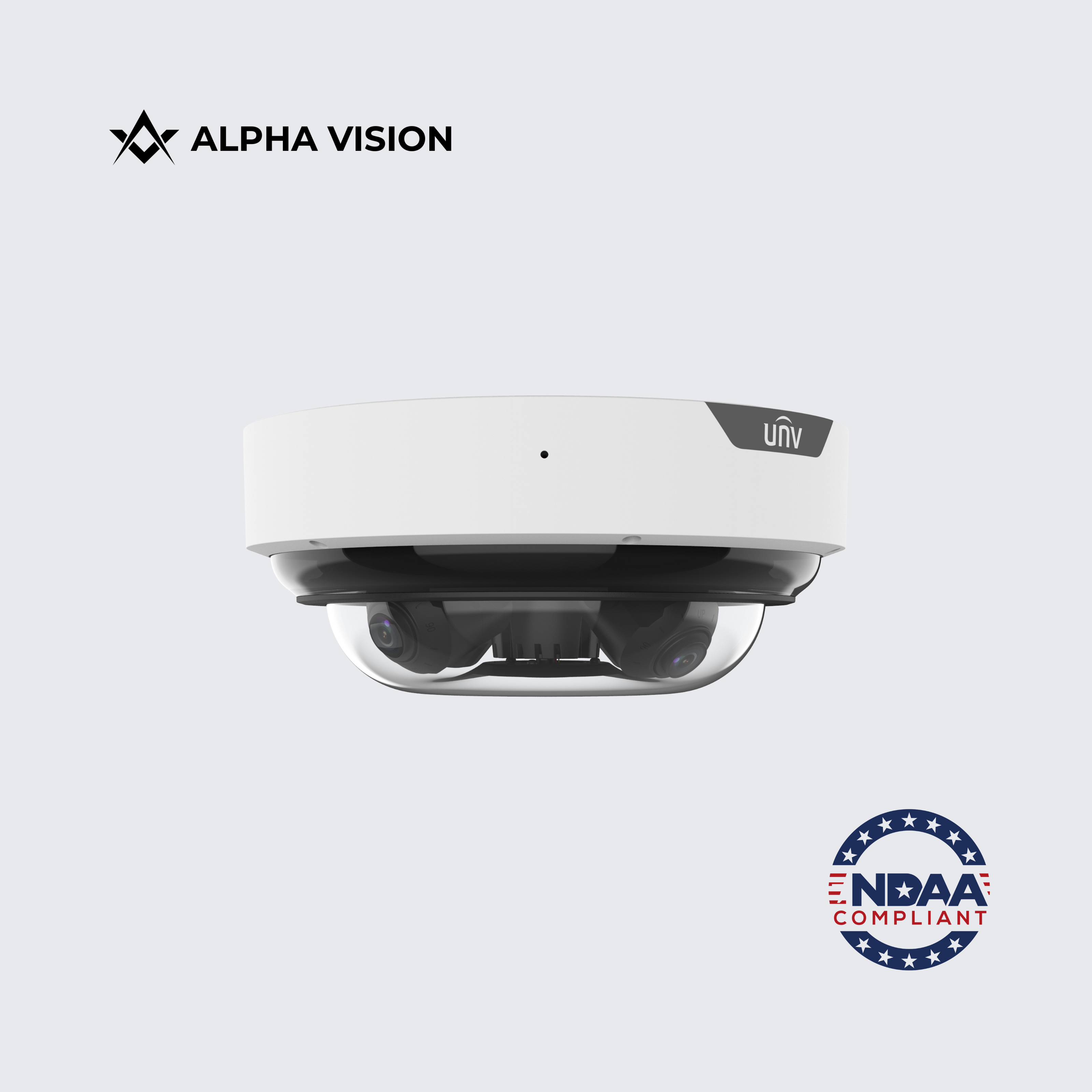

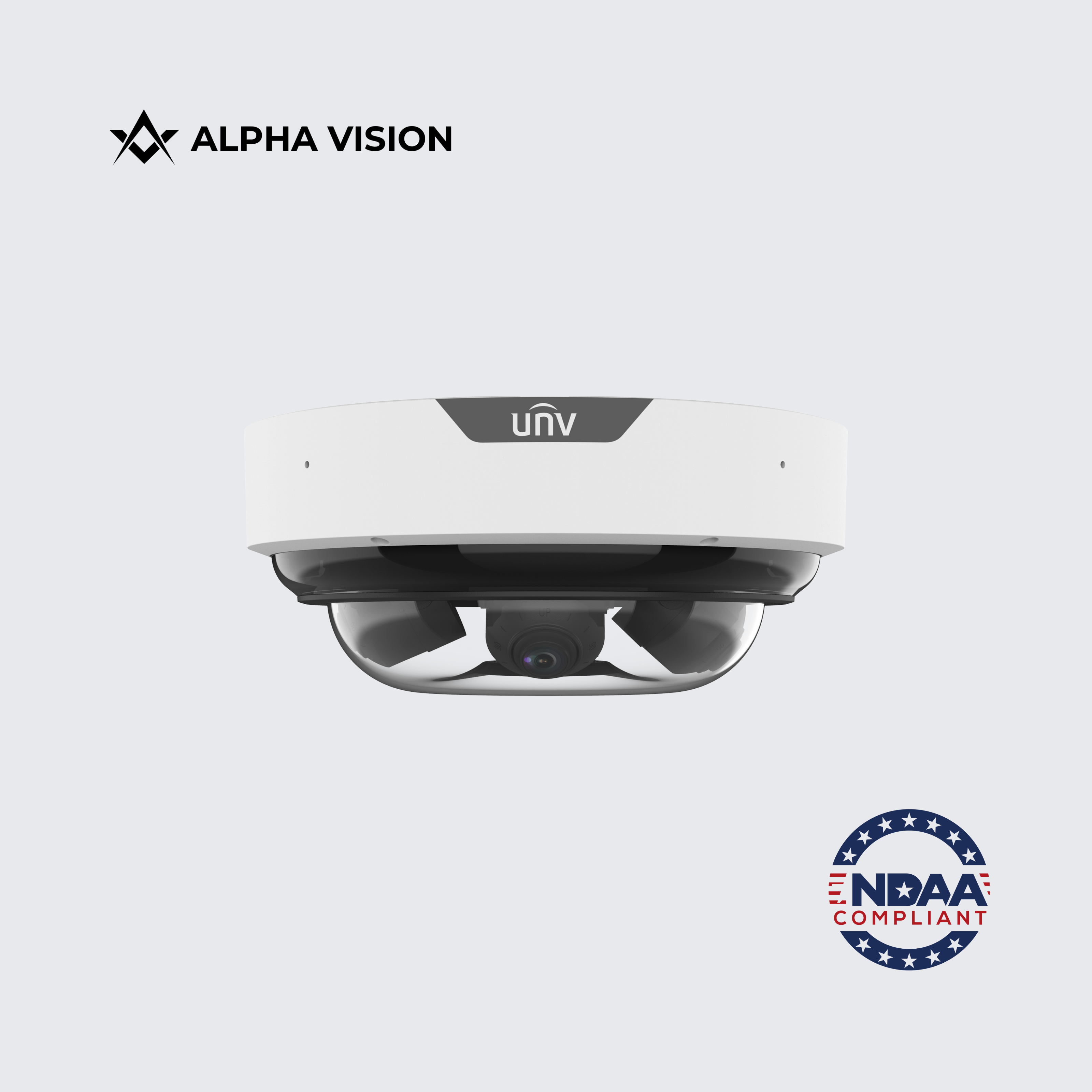

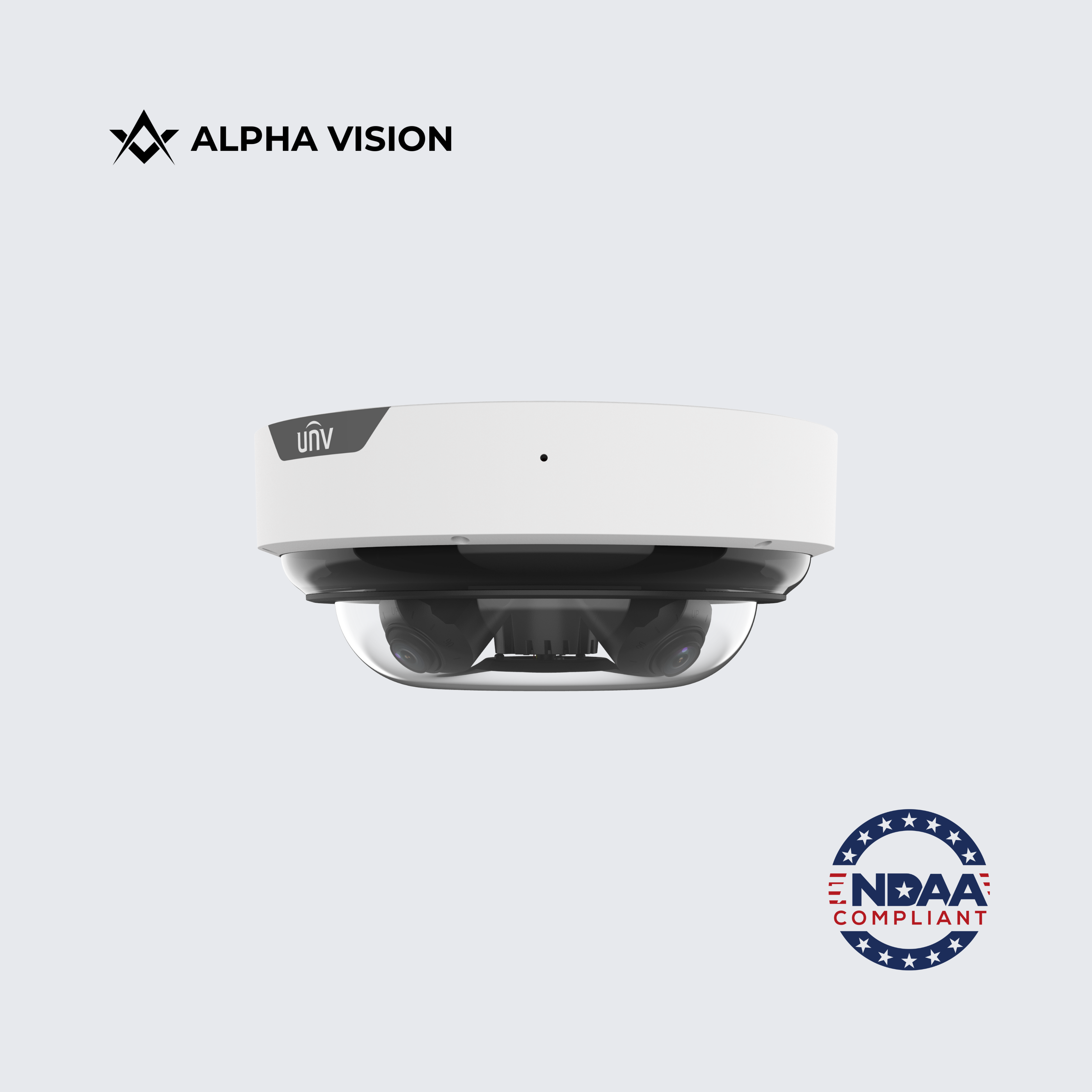

The Uniview IPC8645EA-ADZKM-I1 is a cutting-edge panoramic + PTZ network camera designed for comprehensive wide-area surveillance. Featuring four 5MP panoramic sensors and a fifth 5MP PTZ camera with 25× optical zoom, it delivers seamless situational awareness and targeted detail in one integrated unit.The panoramic module captures a sweeping 180° field of view with crisp 20MP output (4 × 5MP at up to 30 fps), while the high-speed PTZ offers dynamic tracking and intelligent zoom control, supporting up to 100 m (328 ft) IR night vision. It’s ideal for airports, plazas, campuses, and public safety zones where complete visibility and detailed evidence are required.This advanced solution supports Ultra 265, H.265, H.264, and MJPEG compression to reduce storage and bandwidth costs, while delivering smooth, high-resolution video. The camera also features 120 dB true WDR, 3D DNR, and Smart IR for outstanding image quality in complex lighting conditions.Intelligent features include people counting, intrusion detection, motion alerts, line crossing, and tamper alarms. Audio functionality includes built-in microphone and speaker with 2-way audio support. The housing is IP66 weatherproof and IK10 vandal-resistant for durable outdoor performance.With PoE+ support, microSD storage up to 256 GB, and ONVIF S/G/T compatibility, this hybrid panoramic-PTZ camera offers unmatched surveillance flexibility.



FAQs for

What resolution does the camera offer?

The panoramic module delivers 4 × 5MP (2592 × 1944) video, and the PTZ module offers an additional 5MP stream, enabling detailed capture and tracking simultaneously.

Does the PTZ camera offer night vision?

Yes – the PTZ lens supports Smart IR up to 100 m (328 ft), while the panoramic section supports up to 30 m (98 ft).

Is it weatherproof and vandal-proof?

Yes – it’s IP66-rated for outdoor weather protection and IK10-rated for impact resistance.

Does it support remote access and integration?

Yes – it's compatible with Uniview EZStation and EZView, and supports ONVIF Profiles S, G, and T.

What smart detection features are available?
  • Motion detection
  • Line crossing detection
  • Intrusion detection
  • Tampering alarm
  • People counting

Tech Specs for

Image Sensor: 4 × 1/2.7″ CMOS (panoramic), 1 × 1/2.7″ CMOS (PTZ)

Maximum Resolution: 4 × 5MP panoramic + 5MP PTZ (2592 × 1944)

Lens Options: Fixed lens on panoramic (180°); PTZ with 25× optical zoom (5.3 – 130 mm)

Night Vision: IR range up to 30 m (panoramic), 100 m (PTZ)

Video Compression: Ultra 265, H.265, H.264, MJPEG

WDR: 120 dB True WDR; 3D DNR; Smart IR
