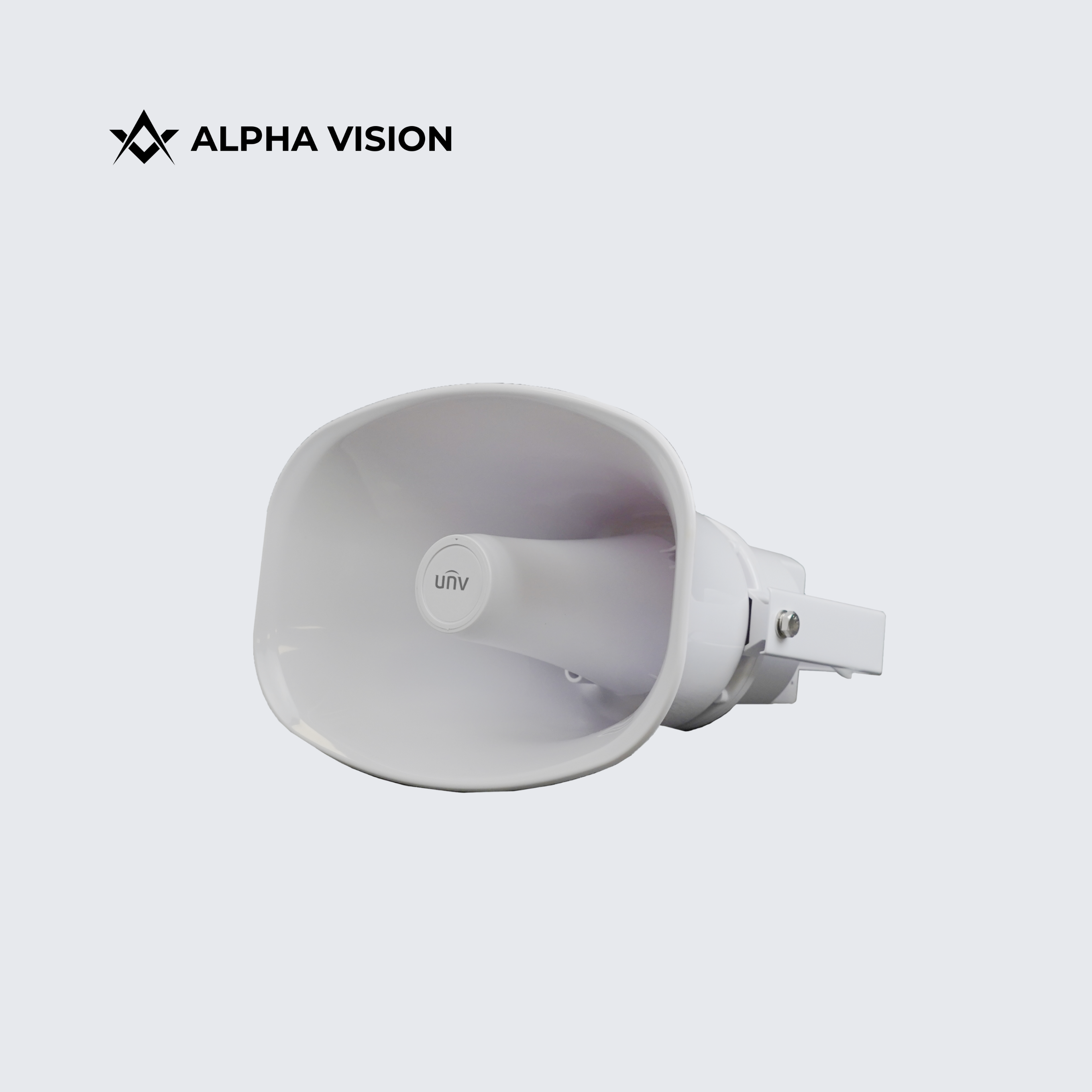

IPS3020-30S| Uniview 30W IP Horn Speaker | Weatherproof, PoE, SIP/ONVIF

Uniview

IPS302030-S

IPS3020-30S| Uniview 30W IP Horn Speaker | Weatherproof, PoE, SIP/ONVIF

$1,079.00 USD
Need help?

References

References and Documentation

Detailed Description

The Uniview IPS3020-30S is a robust IP horn speaker designed to deliver high-intelligibility audio announcements across expansive outdoor and industrial environments. With a built-in 30W digital amplifier and support for SIP and ONVIF protocols, this IP speaker is ideal for integration into IP surveillance systems, ensuring real-time audio warnings or scheduled announcements.Engineered with aluminum housing and rated IP66 for weather resistance, the IPS3020-30S is built to withstand tough conditions while maintaining consistent performance. It supports PoE for simplified installation and features high-SPL output for clear long-range communication.This horn speaker is well-suited for deployment in commercial security zones, school campuses, factories, warehouses, and transit hubs requiring proactive deterrence or mass notification capabilities.



FAQs for

What is the power output of the Uniview IPS3020-30S?

The IPS3020-30S features a built-in 30W digital amplifier, providing loud, clear audio for wide-area coverage.

Does the IPS3020-30S support network audio protocols?

Yes, it supports SIP, ONVIF, and standard audio streaming protocols, enabling seamless integration with IP-based surveillance systems and VoIP platforms.

Is the IPS3020-30S weatherproof?

Yes, the speaker is rated IP66, making it suitable for outdoor applications in harsh environments including rain, dust, and extreme temperatures.

Can the IPS3020-30S be powered through PoE?

Yes, the speaker supports Power over Ethernet (IEEE 802.3af), which simplifies installation by combining power and data transmission through a single cable.

What are the primary use cases for the IPS3020-30S?

It’s commonly used for security alerts, public announcements, and emergency communication in environments such as campuses, factories, logistics yards, and parking areas.

Tech Specs for

Audio Output Power: 30W digital amplifier for long-range clarity

Audio Protocols Supported: SIP, ONVIF, HTTP, RTP, RTSP

Network Interface: RJ45 10/100M Ethernet port

Audio Codec: G.711, G.722

Power Supply: 12V DC or PoE (IEEE 802.3af)

Weatherproof Rating: IP66, suitable for harsh outdoor environments

Operating Conditions: -30°C to +60°C (-22°F to +140°F), ≤95% RH (non-condensing)

Material: Die-cast aluminum housing

Installation: Wall or pole mount, bracket included

Dimensions: Approx. 243×176×276mm (9.6”×6.9”×10.9”)

Weight: Approx. 2.2 kg (4.85 lb)

Certifications: CE, FCC, RoHS

Network Compatibility: ONVIF (Profiles S, G, T), API support

Operating Conditions: -30°C to +60°C (-22°F to +140°F), humidity ≤95% (non-condensing)

Dimensions: Ø122×91mm (4.8”×3.6”)

Weight: Approximately 0.46 kg (1.01 lb)
