NVR501-08B-LP8 | Uniview 16MP PoE Fixed NVR – 8 Channel Models

$449.00 USD

References

References and Documentation

Detailed Description

Product Description

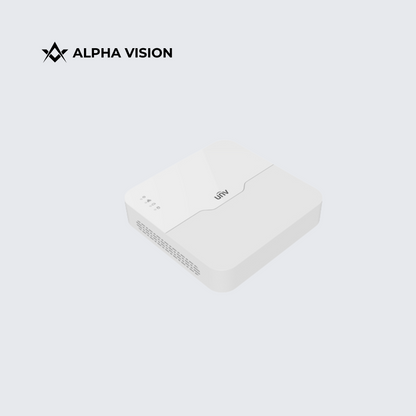

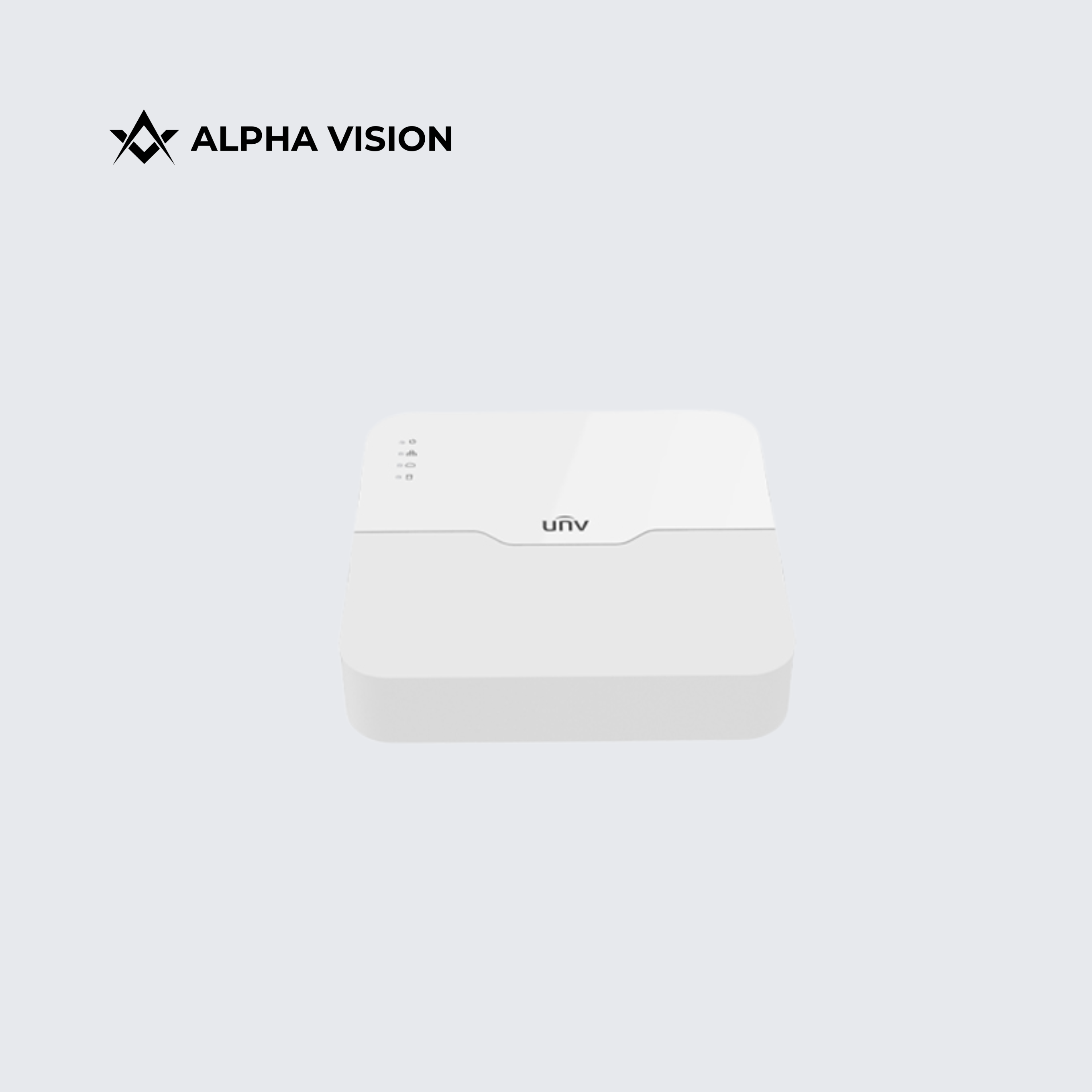

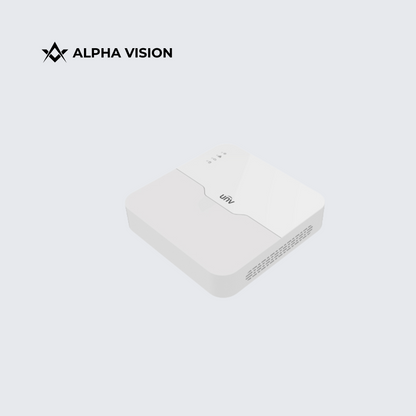

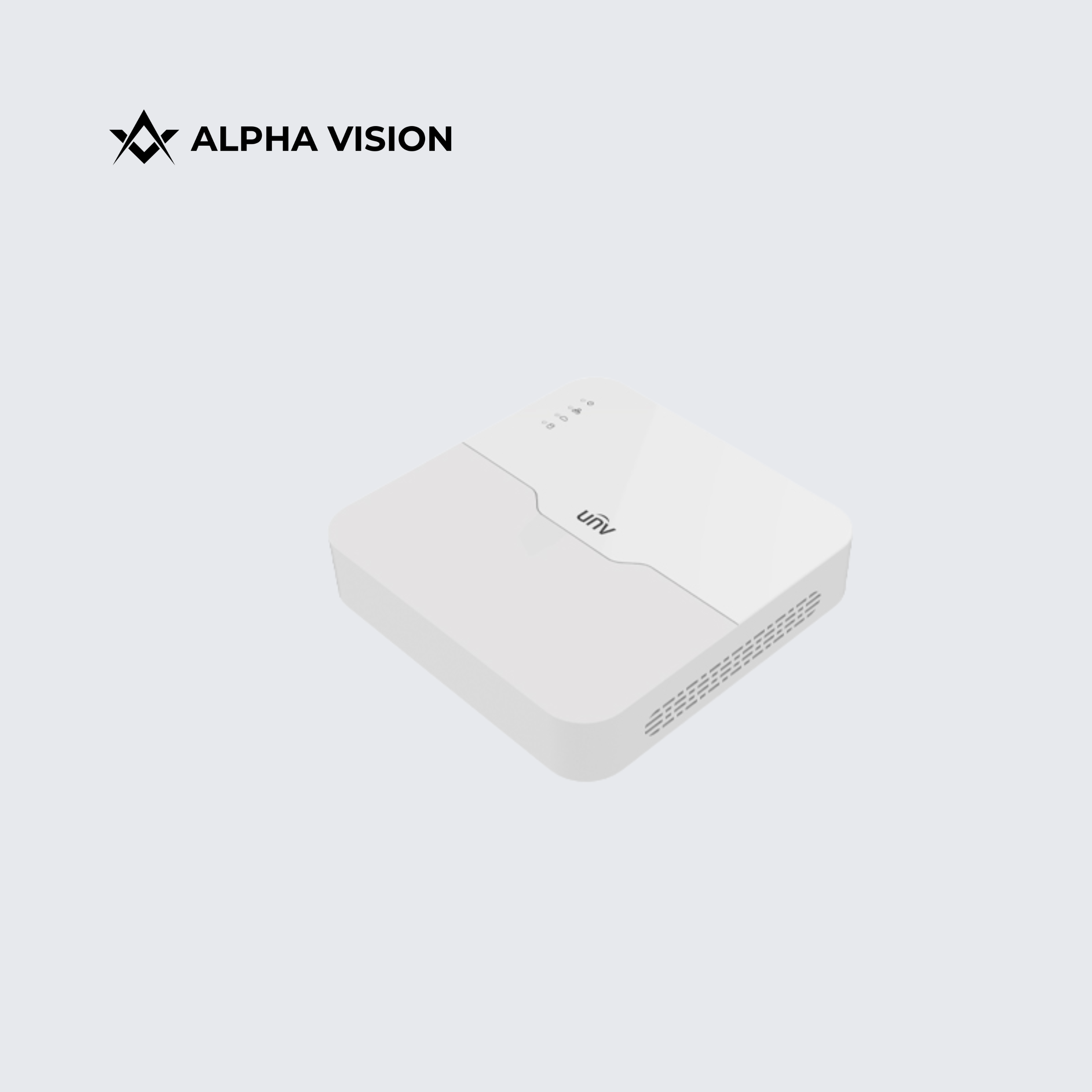

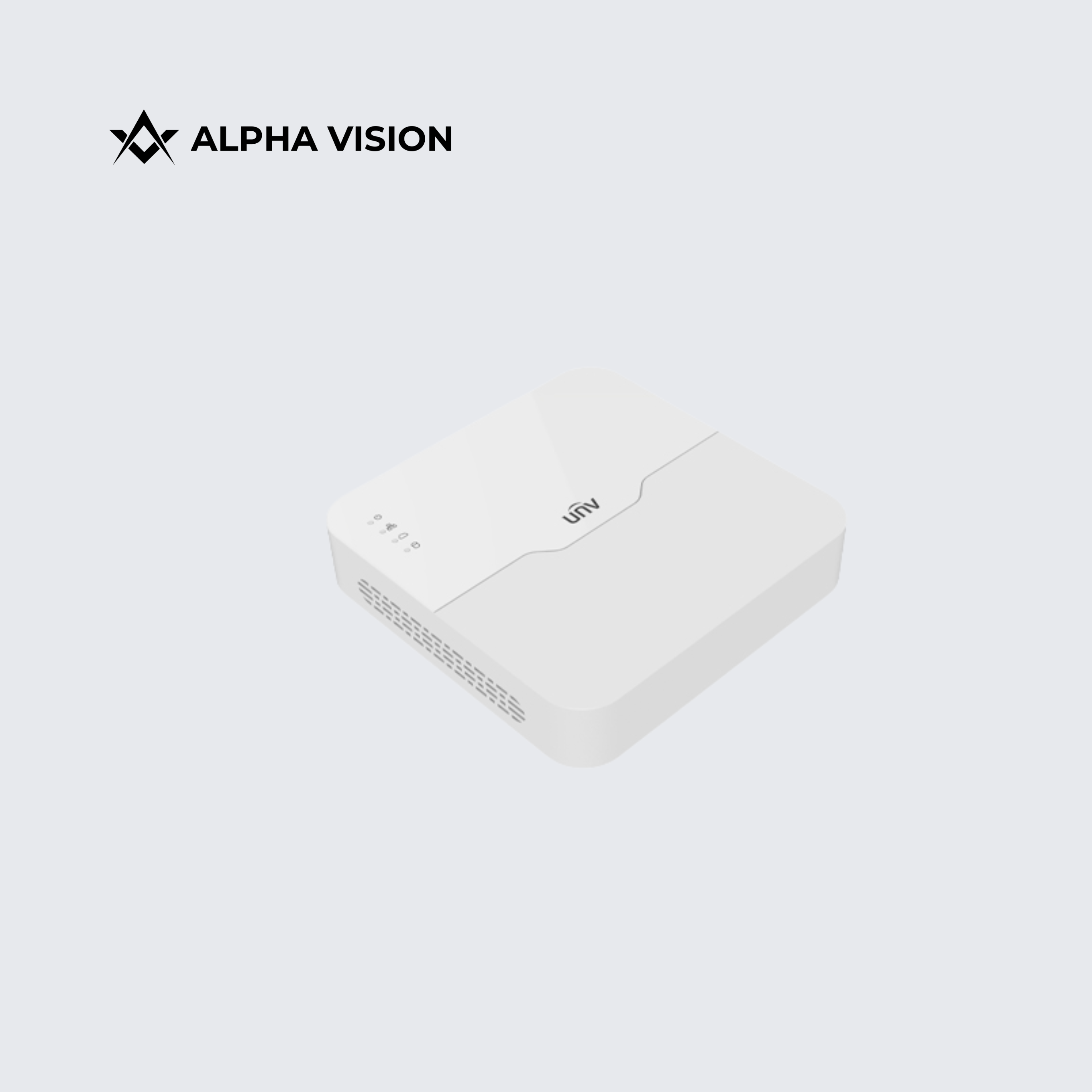

The Uniview NVR501-08B-LP8 is a high-performance 8-channel Network Video Recorder, purpose-built for seamless integration with modern IP surveillance systems. It supports advanced video compression formats including Ultra 265, H.265, and H.264, delivering optimal storage efficiency without compromising image quality.

Equipped with 8 built-in PoE ports, this NVR simplifies system setup by allowing direct connection and power delivery to IP cameras—eliminating the need for separate power infrastructure. It supports high-resolution video recording up to 16MP, ensuring superior image clarity. Reliability is further enhanced by features like ANR (Automatic Network Replenishment) to safeguard video data during network interruptions.

Ideal for small to medium-sized installations, the NVR501-08B-LP8 delivers robust performance, intelligent video analytics, and streamlined deployment—making it an excellent choice for professional-grade security applications.

FAQs for

NVR501-B-LP Series – What is the supported recording resolution?

The NVR501-B-LP Series supports recording resolutions up to 16MP for high-definition video capture.

NVR501-B-LP Series – How many camera channels are supported?

The NVR501-08B-LP8 supports 8 channels.

NVR501-B-LP Series – Are smart detection features included?

Yes, it includes face detection, intrusion detection, cross line detection, people counting, and heat map analytics.

NVR501-B-LP Series – What is the storage capacity?

The system supports 1 SATA interface with storage up to 16TB per hard drive.

NVR501-B-LP Series – What are the video output options?

It provides HDMI output up to 4K (3840×2160) and VGA output up to 1920×1080, with simultaneous video output capability.

NVR501-B-LP Series – Does it support remote access?

Yes, it supports Uniview’s EZView mobile app and ONVIF standards for remote access and third-party device compatibility.

NVR501-B-LP Series – What is the operating temperature range?

The operating temperature range is -10°C to 55°C (14°F to 131°F), suitable for standard indoor installations.

Tech Specs for

Video Input: 8 channels

Decoding Capability: Up to 2-ch@4K, 8-ch@1080P

Recording Resolution: Up to 12MP

Video Compression: Ultra 265, H.265, H.264

Remote Access: Mobile app (Guard Viewer), Web, VMS

Hard Disk: 1 SATA interface, up to 10TB

Outgoing Bandwidth: 80Mbps

Incoming Bandwidth: 80/160Mbps

Alarm I/O: 4/1 (varies by model)

Audio I/O: 1/1 RCA

Interfaces: HDMI and VGA simultaneous output

Network Interface: 1 × RJ-45 10/100Mbps Ethernet port

USB: 2 × USB 2.0 ports

Smart Functions: Human body detection, face detection

Power Supply: DC 12V

Operating Temperature: -10°C ~ +55°C (14°F ~ 131°F)
