Product Description

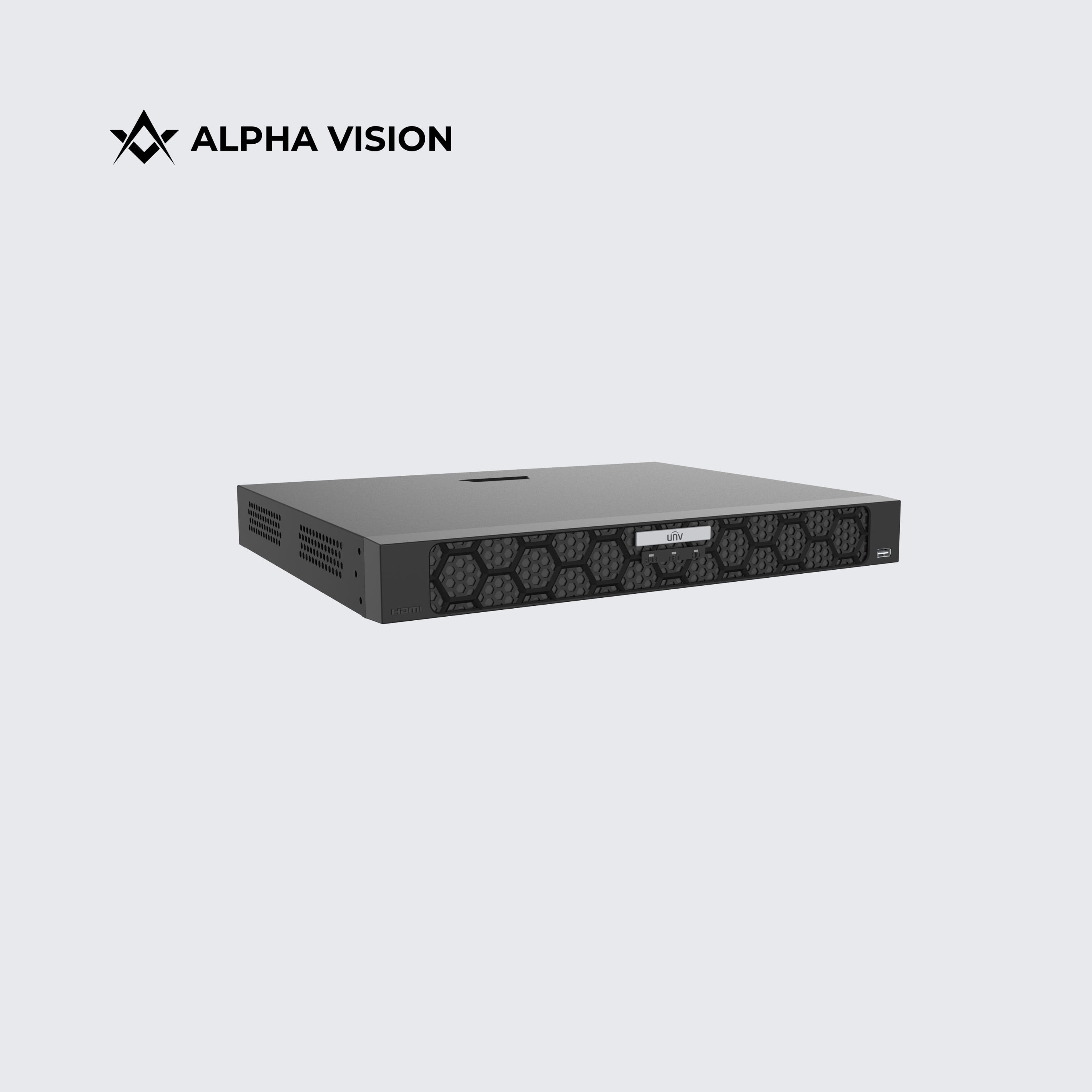

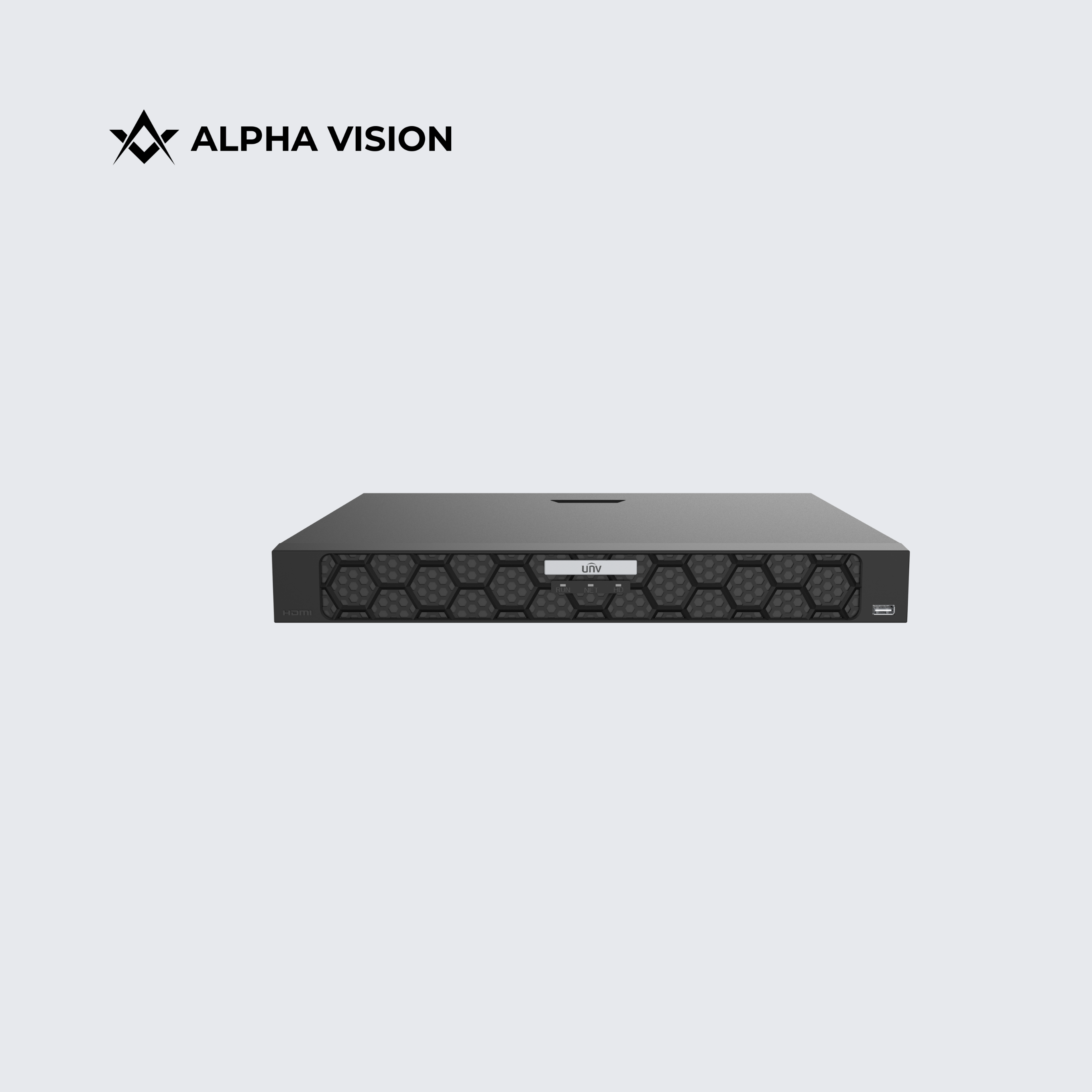

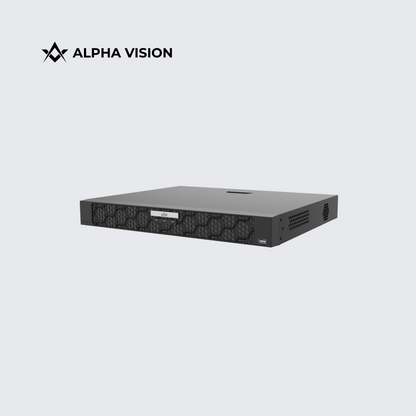

The Uniview NVR502-08B-P8-IQ Series is an advanced 8-channel network video recorder designed for high-efficiency video surveillance with built-in Power over Ethernet (PoE) ports. This recorder simplifies system setup by directly powering connected IP cameras through its 8 integrated PoE ports. Supporting Ultra 265, H.265, H.264, and MJPEG compression formats, the NVR502-08B-P8-IQ optimizes storage and bandwidth usage while maintaining superior video quality. With support for recording resolutions up to 16MP and dual SATA interfaces for scalable storage up to 16TB per HDD, this model provides a reliable solution for small to medium-sized surveillance systems. Additional features include smart video analytics, HDMI and VGA simultaneous output, ONVIF compatibility for third-party integration, and remote monitoring through Uniview’s EZView mobile application.



FAQs for

What is the maximum recording resolution supported by the NVR502-08B-P-IQ Series?

The NVR502-08B-P-IQ Series supports up to 16MP recording resolution, delivering ultra-high-definition video capture for detailed surveillance coverage.

How many PoE ports are available on the NVR502-08B-P-IQ Series?

This recorder features 8 built-in PoE ports, allowing direct connection and power supply to 8 compatible IP cameras for easy and efficient installation.

Does the NVR502-08B-P-IQ Series support smart video analytics?

Yes, the NVR502-08B-P-IQ Series includes smart video analytics such as intrusion detection, line crossing detection, face detection, and people counting for proactive security monitoring.

What is the storage capacity of the NVR502-08B-P-IQ Series?

The recorder supports two SATA interfaces, each capable of handling up to 16TB per HDD, providing substantial storage for long-term video retention.

Which video compression technologies are supported by the NVR502-08B-P-IQ Series?

The NVR supports Ultra 265, H.265, H.264, and MJPEG video compression formats, offering efficient storage use without compromising video quality.

Is the NVR502-08B-P-IQ Series compatible with third-party cameras?

Yes, the NVR502-08B-P-IQ Series is ONVIF compliant, ensuring compatibility with a wide range of third-party IP cameras that support ONVIF standards.

Does the NVR502-08B-P-IQ Series offer simultaneous video output?

Yes, the recorder provides HDMI output up to 4K (3840×2160) resolution and VGA output up to 1080P (1920×1080), supporting simultaneous multi-screen display.

What is the network bandwidth capability of the NVR502-08B-P-IQ Series?

The NVR502-08B-P-IQ supports incoming bandwidth up to 160Mbps and outgoing bandwidth up to 128Mbps, ensuring stable video transmission and playback.

Does the NVR502-08B-P-IQ Series support remote monitoring?

Yes, the recorder allows remote monitoring and management through Uniview’s EZView mobile app, providing users with real-time video access, playback, and system control from smartphones or tablets.

What are the recommended operating conditions for the NVR502-08B-P-IQ Series?
  • The NVR operates effectively within a temperature range of -10°C to 55°C (14°F to 131°F), making it suitable for most indoor surveillance environments.

Tech Specs for

Video Input: 8 channels, PoE (8 ports)

Decoding Capability: 1-ch 12MP, 2-ch 4K, 4-ch 4MP, 8-ch 1080p

Recording Resolution: Up to 12MP

Incoming Bandwidth: 128 Mbps

Outgoing Bandwidth: 128 Mbps

Storage: 2 SATA interfaces, up to 10TB per HDD

Audio Capability: 1-ch RCA input, 1-ch RCA output

Video Output: 1 HDMI (4K) & 1 VGA simultaneous

AI Functions: Face recognition, face comparison, perimeter protection, people counting

Network Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, NTP, DHCP, DNS, DDNS, SMTP, UPnP, SNMP

Remote Access: Web browser, mobile app (Guard Viewer)

Alarm I/O: 4 inputs, 1 output

USB Interface: 2 × USB 2.0 ports

Operating System: Embedded Linux

Power Supply: DC 52V, 1.92A

Dimensions: 380 × 315 × 52 mm (W×D×H)

Weight: ≤ 2.66 kg (without HDD)

Working Environment: -10°C to +55°C (14°F to 131°F), 10% to 90% humidity
