Detailed Description
Proactive AI Security for Complete Peace of Mind

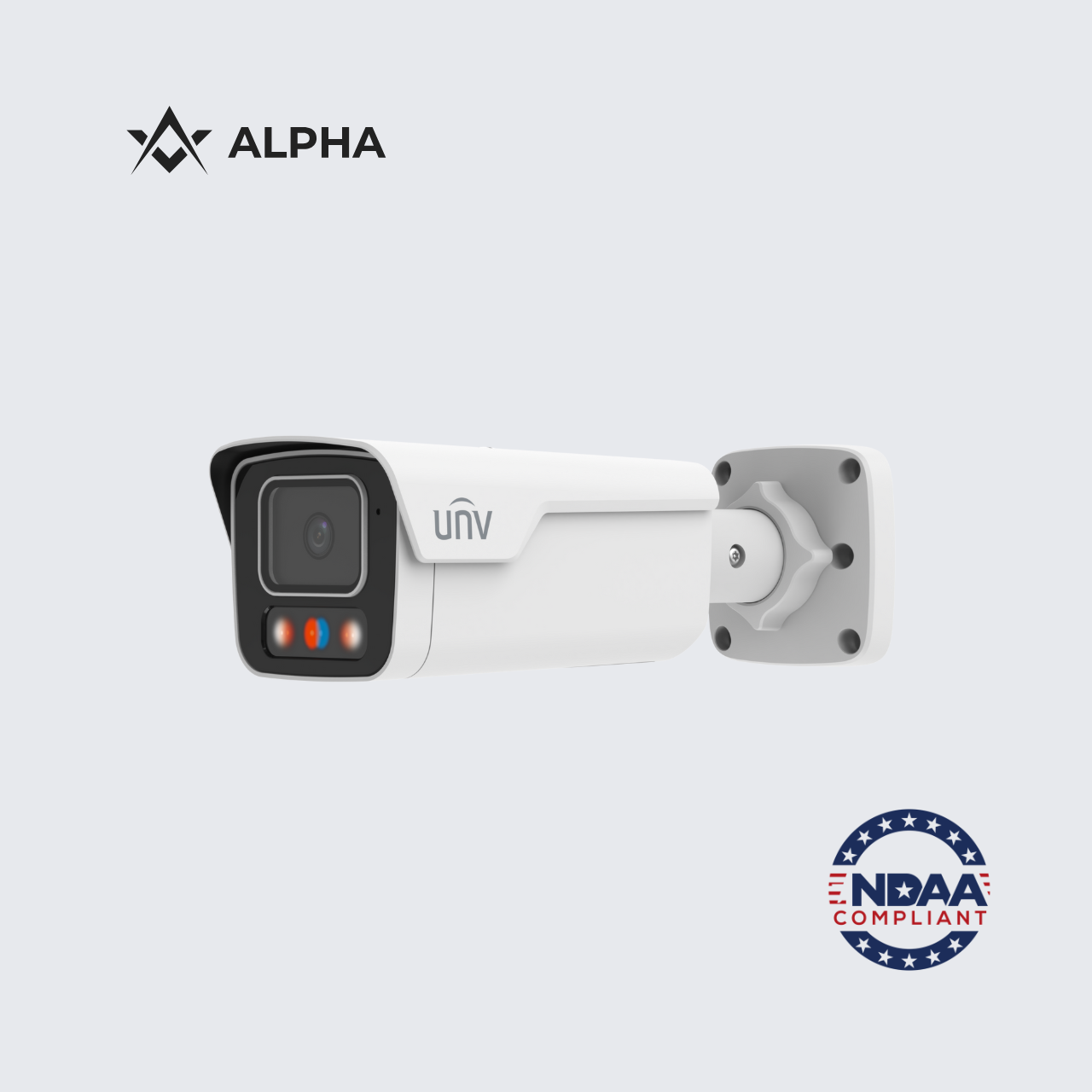

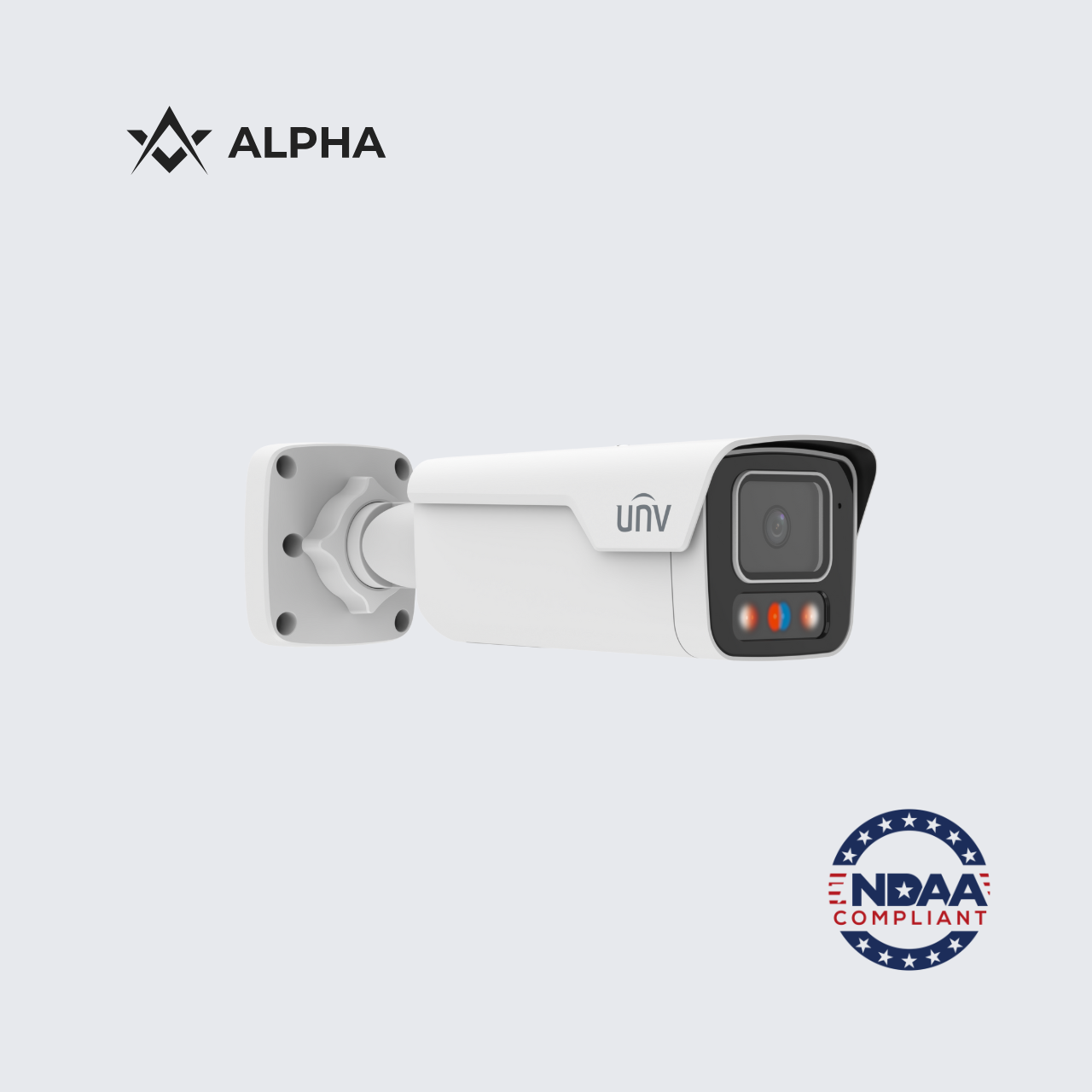

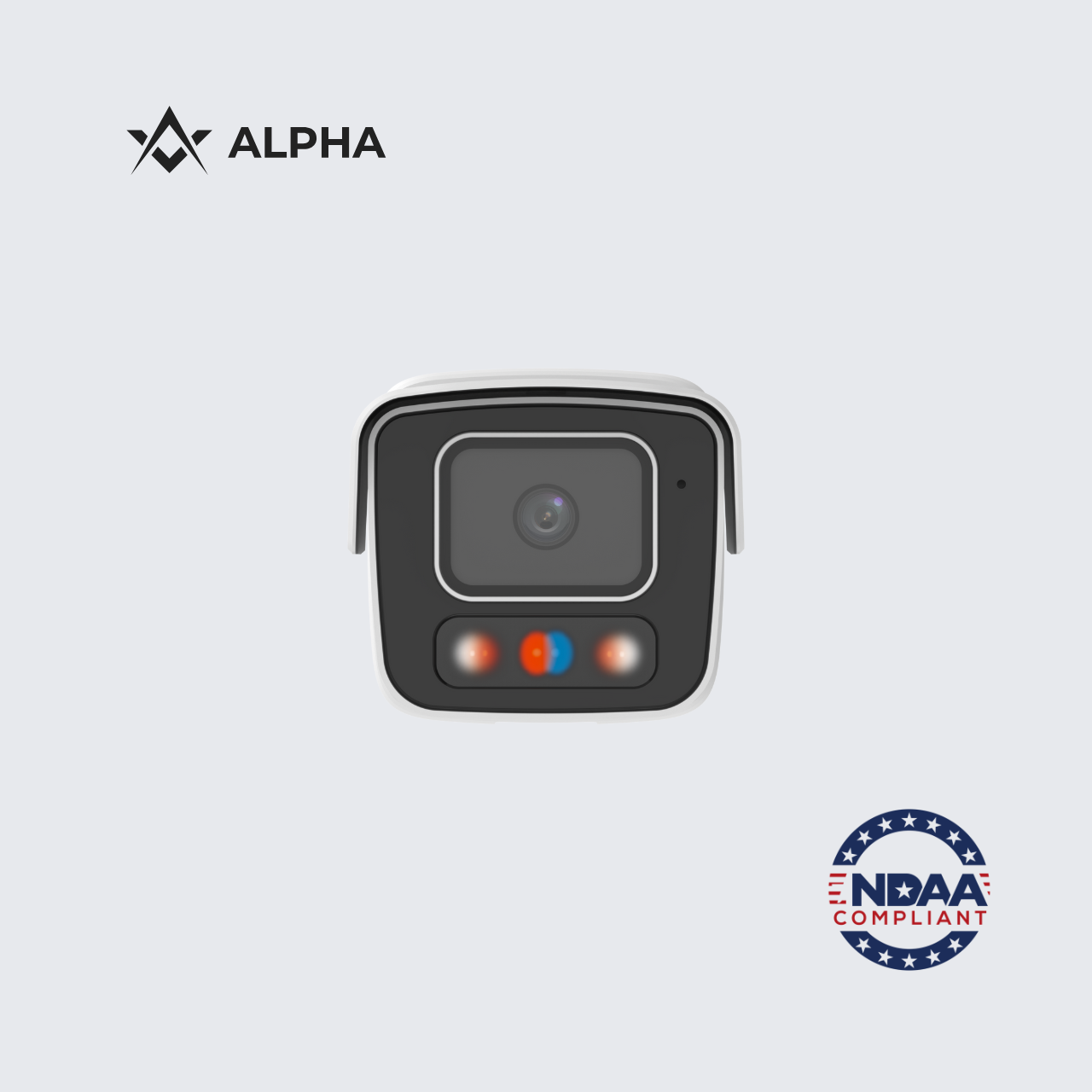

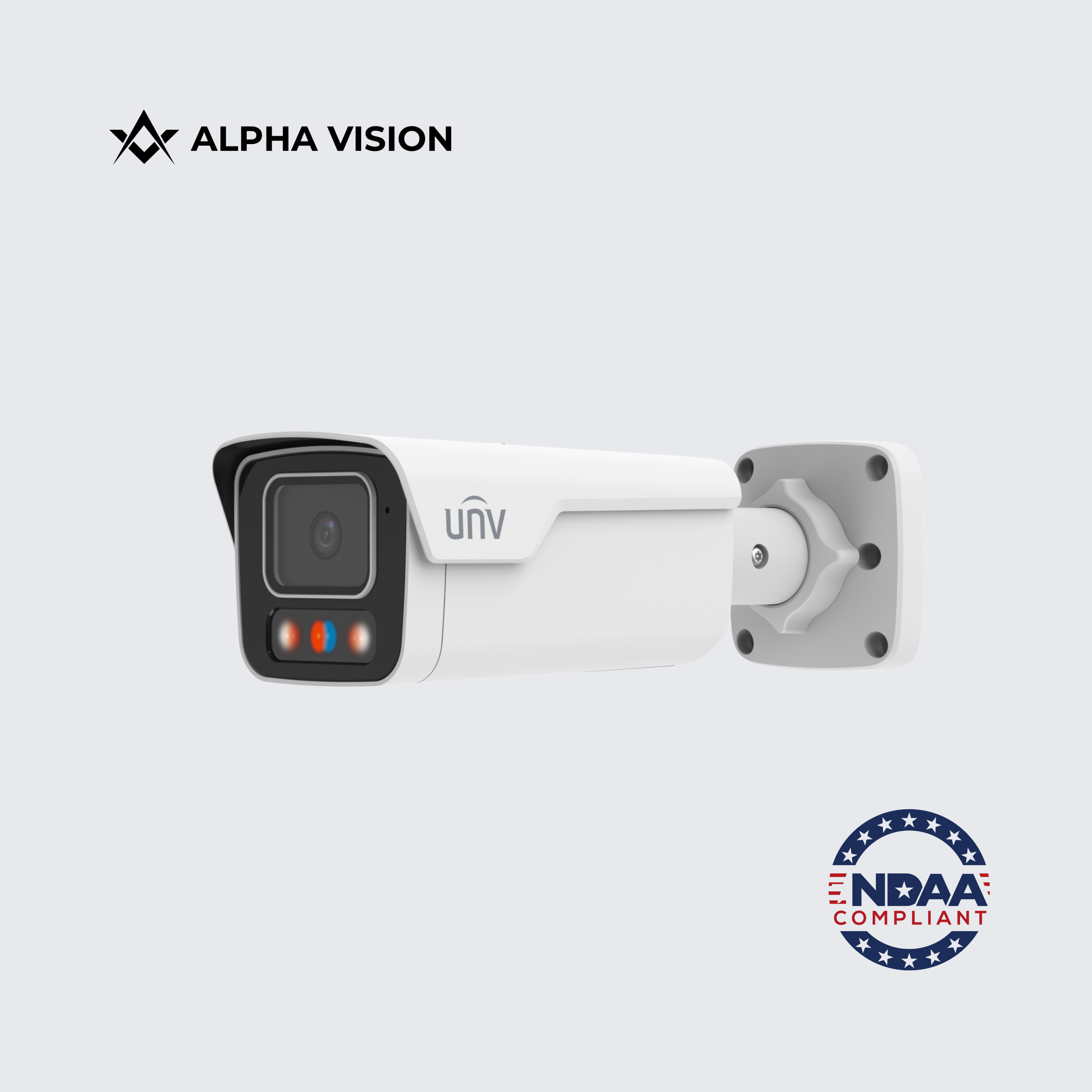

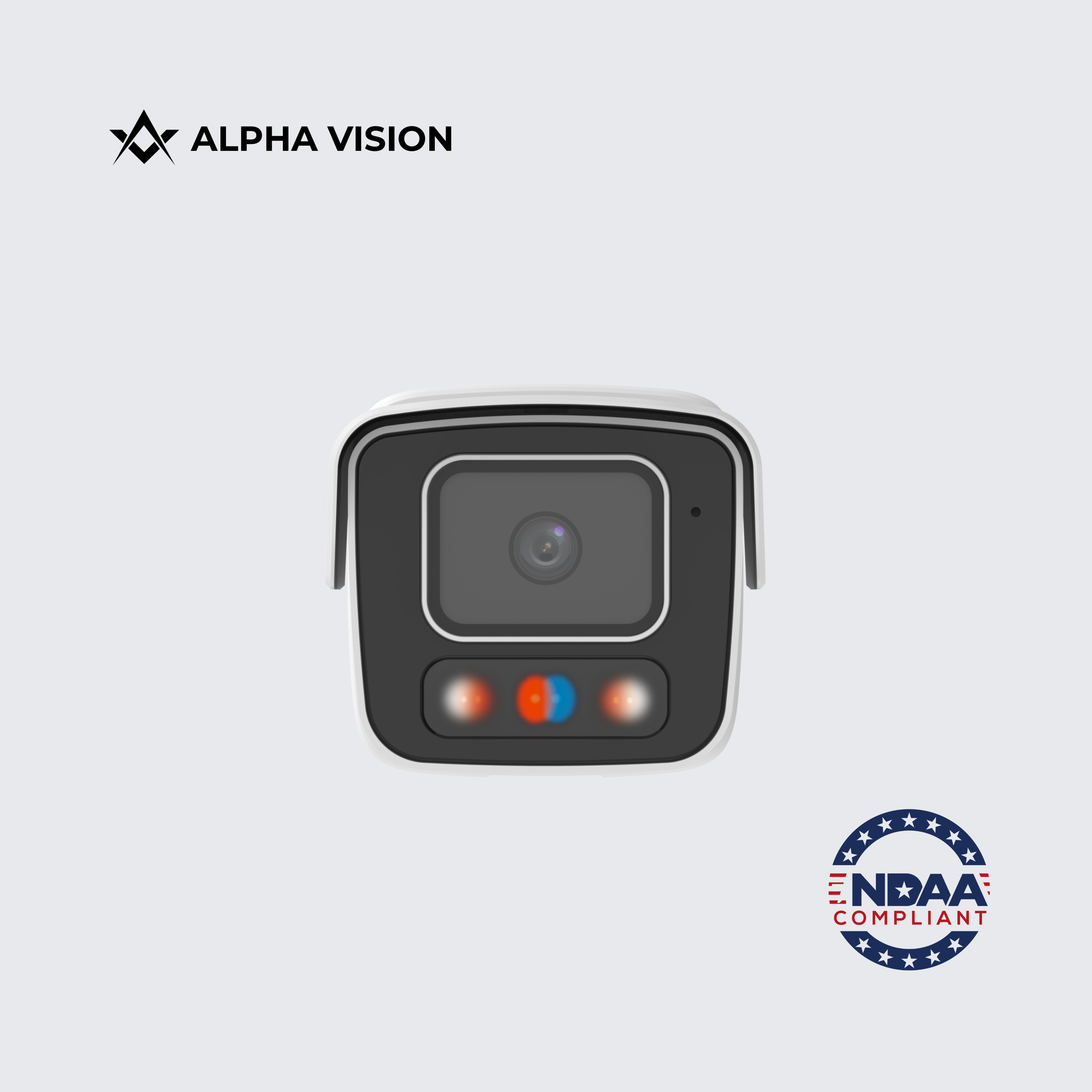

Elevate your property's security with the Uniview IPC2B14SS‑ADF28KMC‑I1, a cutting-edge 4MP Tri-Guard Outdoor Bullet Network Camera. Engineered for robust perimeter protection, this camera combines high-resolution imaging, advanced AI, and active deterrence features to stop intruders before they act. Whether you're securing a home, business, or critical infrastructure, the Tri-Guard camera delivers unparalleled performance and reliability, day or night.

Its powerful AI-driven smart intrusion prevention system accurately distinguishes between humans and vehicles, significantly reducing false alarms from pets, weather, or other irrelevant motion. When a genuine threat is detected, the Tri-Guard system activates its powerful active deterrence features, including a flashing strobe light and a customizable audio warning, to actively ward off potential trespassers.

Key Benefits:
  • Deter Intruders Instantly: Proactively stop threats with the integrated siren and flashing warning light (Tri-Guard). You can also use the built-in speaker to play a custom audio message or perform a live two-way voice-down.

  • See in Full Color, 24/7: Experience crystal-clear, full-color surveillance even in low-light conditions with advanced Dual-Light technology. For total darkness, the powerful 40m (131 ft) infrared ensures no detail is ever missed.

  • Eliminate False Alarms: Focus only on real threats. Advanced AI accurately distinguishes between humans and vehicles, ensuring you are only alerted to events that matter, saving you time and frustration.

  • Crystal-Clear 4MP Resolution: Capture sharp, detailed video evidence with a high-performance 4MP sensor that delivers stunning 2688x1520 resolution, making it easy to identify faces, license plates, and other critical details.

  • Superior Image Quality in Any Light: With 130 dB True WDR (Wide Dynamic Range), the camera overcomes harsh backlighting and high-contrast scenes, ensuring balanced and clear footage in challenging lighting conditions like sun glare or shadows.

  • Built for the Outdoors: Designed to withstand the elements, this camera features a rugged IP67 weatherproof rating, guaranteeing reliable operation in rain, dust, and extreme temperatures.

  • Efficient Storage & Bandwidth: Save on storage costs without sacrificing video quality. With Ultra 265 video compression, this camera reduces storage and bandwidth requirements by up to 95% compared to standard compression technologies.

FAQs for

What is Uniview Tri-Guard technology?

Tri-Guard technology is an active deterrence system that integrates a smart intrusion prevention AI, a flashing warning light (strobe), and a built-in speaker for siren or custom audio alerts. It's designed to proactively deter intruders upon detection.

Can this camera see in color at night?

Yes. It features Dual-Light technology, which uses a warm white light to provide full-color video in low-light conditions. In complete darkness, it can switch to its powerful 40m (131 ft) infrared (IR) for clear black-and-white imaging.

Is the IPC2B14SS‑ADF28KMC‑I1 suitable for outdoor use?

Absolutely. The camera has a robust IP67 weatherproof rating, making it completely protected against dust and water immersion. It's designed to operate reliably in a wide range of outdoor environments and temperatures.

How is this camera powered?

This camera is flexible and can be powered via PoE (Power over Ethernet, IEEE 802.3af) using a single network cable for both data and power, or with a standard 12V DC power supply.

What kind of storage options are available?

It features an onboard microSD card slot that supports up to 512 GB of local storage. It also supports ANR (Automatic Network Replenishment) and can record to a NAS (Network Attached Storage).

Does this camera support two-way audio?

Yes, with its built-in high-quality microphone and speaker, this camera supports two-way audio communication, allowing you to listen in and speak through the camera from your mobile device or monitoring station.

How does the smart intrusion prevention reduce false alarms?

The camera uses an advanced AI algorithm to analyze moving objects and classify them as humans, vehicles, or non-motorized vehicles. This allows it to filter out irrelevant motion caused by animals, rain, or moving leaves, ensuring alerts are only triggered for genuine threats.

Is this camera compatible with third-party NVRs?

Yes, the camera is ONVIF compliant (Profiles S, G, and T), which ensures interoperability with a wide range of third-party NVRs and video management systems that also support the ONVIF standard.

What is the viewing angle of the 2.8mm lens?

The 2.8mm fixed lens provides a wide horizontal field of view of approximately 102.3°, making it ideal for monitoring large areas like driveways, yards, and parking lots.

How does the active deterrence feature work?

When the smart intrusion prevention AI detects a person or vehicle in a restricted area, it can automatically trigger a flashing red and blue strobe light and sound a loud siren or play a pre-recorded custom audio message to warn off the intruder.

Tech Specs for
Tech Specs
  • Image Sensor: 1/2.7" 4.0 Megapixel, Progressive Scan, CMOS
  • Max. Resolution: 2688 x 1520
  • Lens: 2.8mm Fixed Lens
  • Field of View (H): 102.3°
  • Illumination:
  • Video Compression: Ultra 265, H.265, H.264, MJPEG
  • Frame Rate: 30 fps @ 2688x1520
  • Wide Dynamic Range (WDR): 130dB True WDR
  • Smart AI Analytics: Cross Line, Intrusion, Enter Area, Leave Area (with Human/Vehicle Classification), People Flow Counting, Crowd Density Monitoring
  • Audio: Built-in Microphone & Speaker
  • Deterrence: Flashing red and blue warning light, Siren, and custom audio messages
  • On-board Storage: MicroSD card slot, up to 512 GB
  • Network Protocols: ONVIF (Profile S, Profile G, Profile T), API
  • Power: DC 12V (±25%), PoE (IEEE 802.3af)
  • Protection: IP67 Weatherproof Rating
  • Operating Conditions: -30°C to 60°C (-22°F to 140°F)
